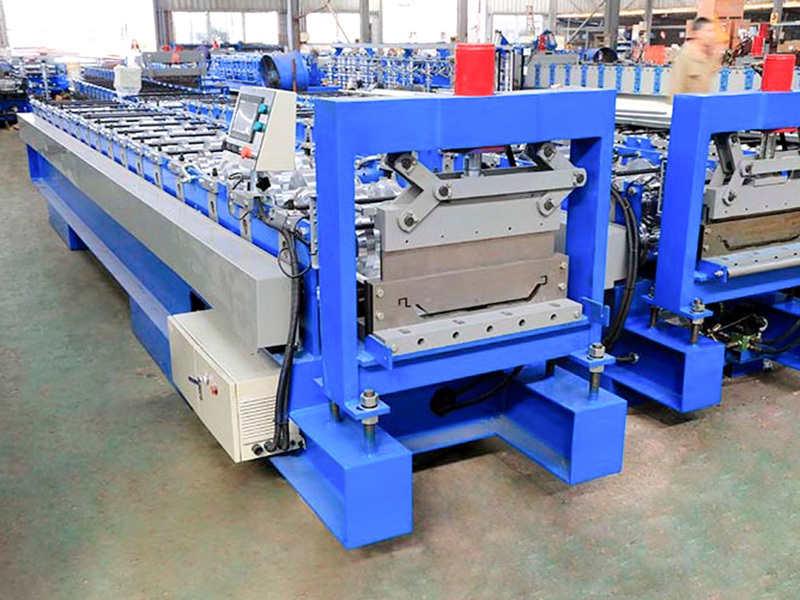

490-Type Metal Standing-seam Roofing Machine

Equipment Components

1). Hydraulic Uncoiler: Supports high-strength steel coils; features high-torque hydraulic expansion/contraction and a damping braking system.

2). Multi-roller Heavy-duty Leveling & Feeding Unit: Effectively eliminates internal stress in high-strength steel (G550) and ensures the flat sheet enters the main forming unit with high precision.

3). Servo Pre-punching System (Optional): Punches installation holes (for connecting T-shaped fixed brackets) at preset intervals while the material is still flat.

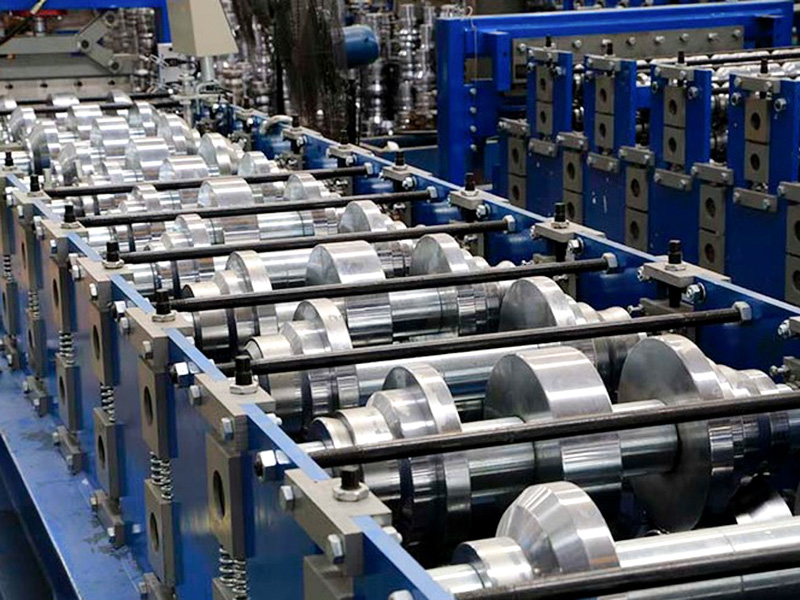

4). Main Roll-forming Unit (Core Component): Features a robust, thickened integral frame structure and 18–22 progressive forming stations. The main shafts are made of large-diameter, high-strength alloy steel subjected to precision heat treatment (quenching and tempering) to withstand the immense lateral forces generated during the forming of extra-high ribs.

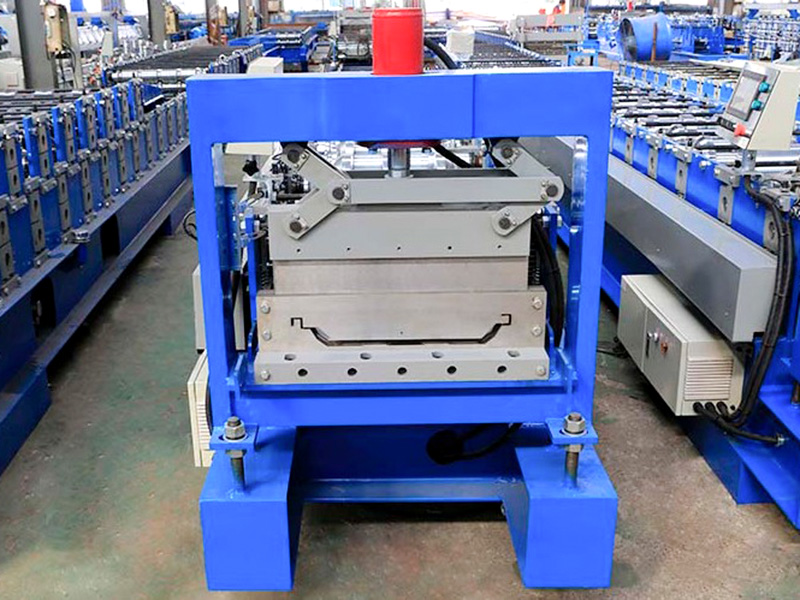

5). Cut-to-Length System: Standard hydraulic shear ensures the high-rib profile at the panel ends remains free from crushing or deformation.

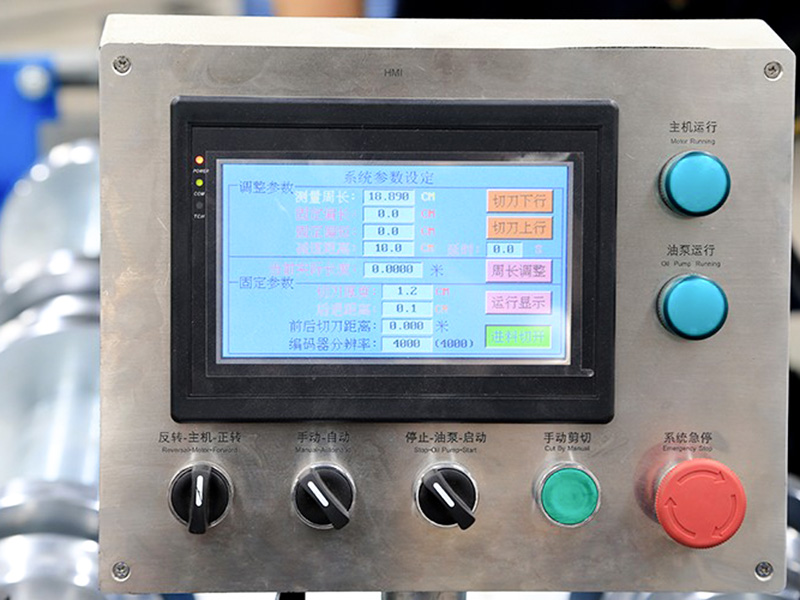

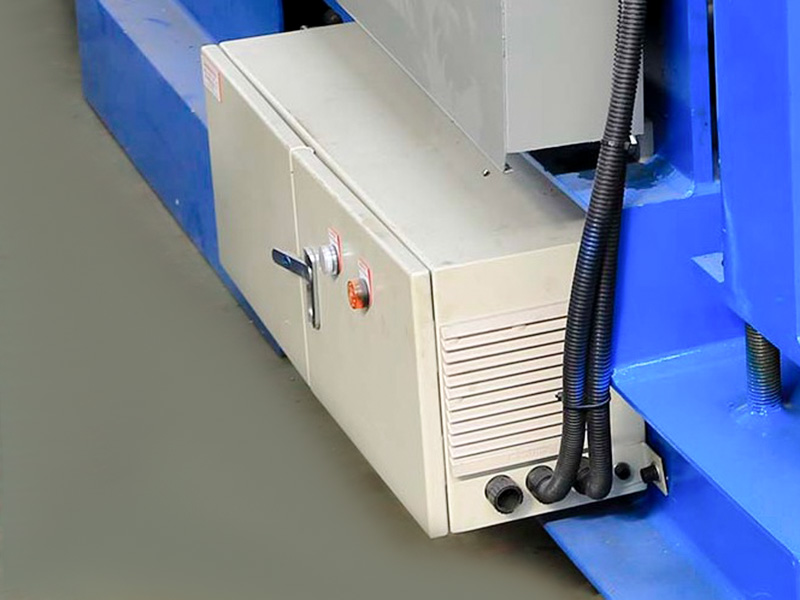

6). PLC Fully Automatic Control System: Equipped with an HMI (Human-Machine Interface) to achieve precise closed-loop control of forming speed, punching intervals, and cutting length.

Standard Process Flow:

Uncoiling → Leveling & Feeding → (Pre-punching) → 18–22 Station Roll Forming → Cut-to-Length (Flying Saw or Hydraulic Shear) → Finished Product Discharge

Application Areas

The panel profiles produced by this equipment target the high-end architectural market:

Large-scale Public Buildings: Airport terminals, high-speed railway stations, large sports venues, and exhibition centers.

Industrial Landmark Buildings: Large logistics and warehousing centers, high-end manufacturing plants.

High-end Residential & Commercial: Luxury villa complexes and commercial complex roofing.
