The high speed roofing sheet roll forming machine is a fully automatic sheet metal processing machine designed specifically for the construction industry. Its core function is to continuously and high-speed roll-form metal coils (such as color-coated steel, galvanized steel, and aluminum-magnesium-manganese steel) into roof panels with specific cross-sectional shapes (such as wavy, trapezoidal, and standing seam).  Characterized by high speed (typically ≥30 m/min), it features high efficiency, high precision, and low loss, making it a key production equipment for the roof construction of large steel structures, such as factories, airports, and stadiums.
Get A Quote
PREV：Earthquake Resistance Shear Wall Production LineNEXT：No next article
  • Product Information

  • Core Functions and Technical Features:

    1. High-Speed Continuous Forming

    Operating Speed: 30-150 m/min (3-5 times that of conventional roll forming machines)

    Drive: Servo motor with synchronous control (each roll is independently driven)

    Advantages: 5,000-15,000 m2 of roof panels can be produced in 8 hours, meeting the rapid construction requirements of large-scale projects.

    2. High-Precision Cross-Section Control

    Forming Accuracy: ±0.5mm/meter (Ensures Tight Roof Joints)

    Key Technologies:

    CNC Grinding of Rollers (Accuracy ±0.01mm)

    Online Laser Thickness Measurement + Closed-Loop Feedback System (Real-Time Compensation for Plate Thickness Fluctuations)

    Dynamic Hydraulic Lateral Positioning (Prevents Deviation)

    3. Intelligent Automation

    Automatic Die Change System (Optional): Switches between different plate types (e.g., 760 → 820) within 15 minutes.

    IoT Remote Monitoring: Real-time data collection (speed, failure rate, output) and mobile management support.

    Automatic Lubrication System: Precisely sprays lubricant onto rollers to reduce wear.

    Core Structure:

    Uncoil Leveling Unit: Hydraulic uncoiler + 17-roller straightener (eliminates coil stress, ensuring flatness error ≤1mm/m² at the head and tail of the sheet)

    Servo Feeder: Pinch rollers + encoder, feeding accuracy ±0.3mm (ensuring accurate cut placement at each section)

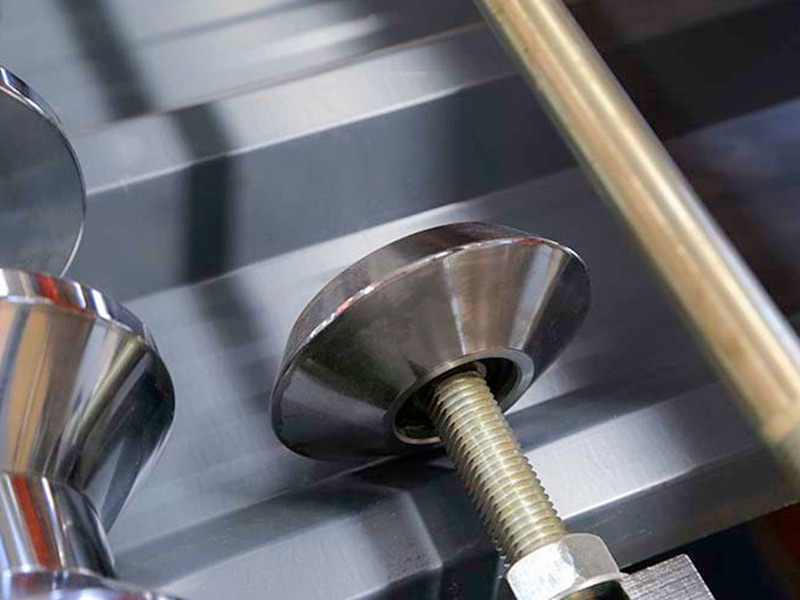

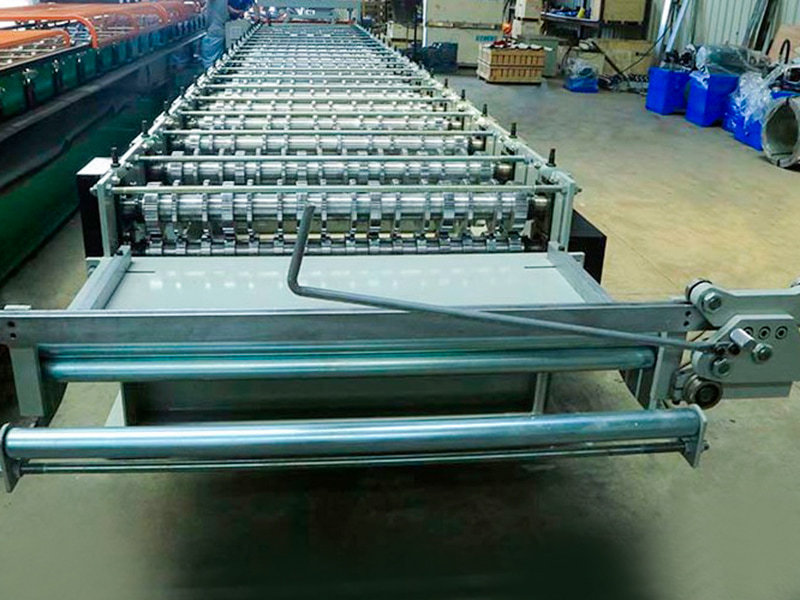

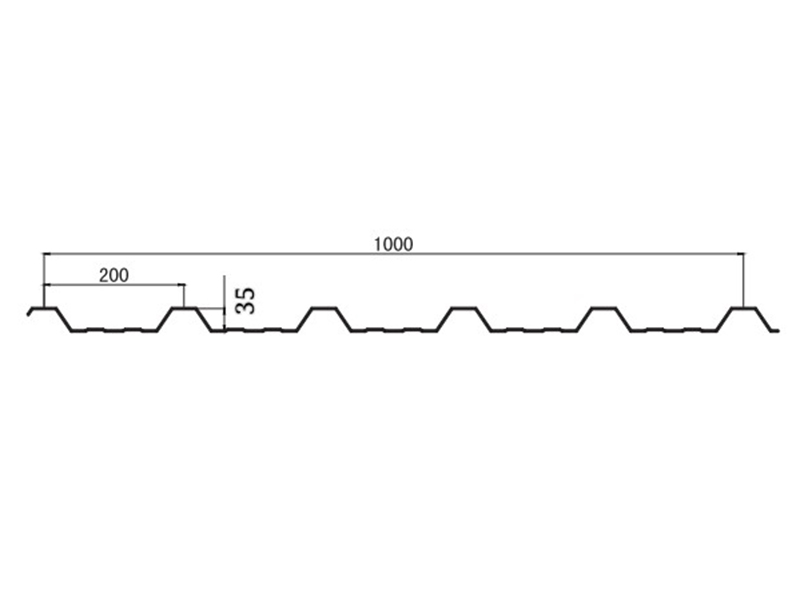

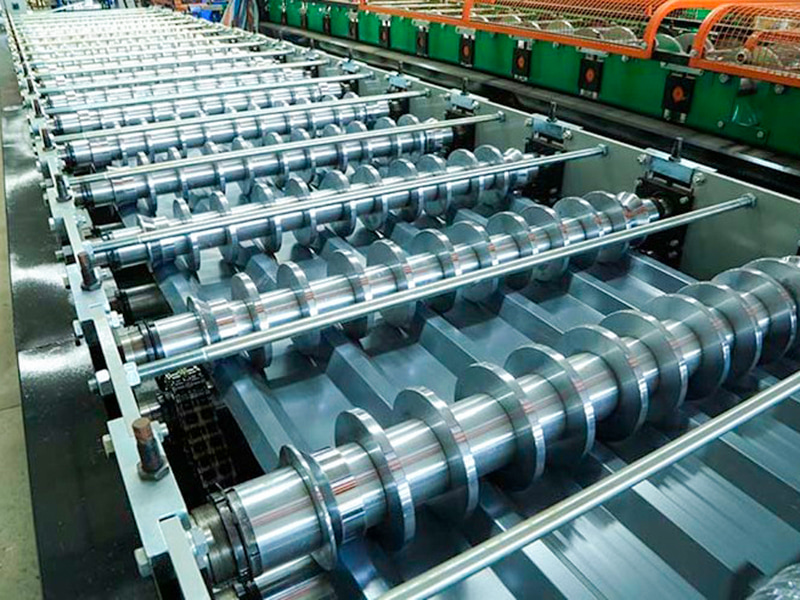

    Forming Machine (Core Unit): 20-30 sets of rollers arranged in a stepped pattern, divided into rough forming, finishing, and sizing sections

    Hydraulic Cutting System: Flying shear/pneumatic shear (non-stop during cutting, burr ≤0.1mm)

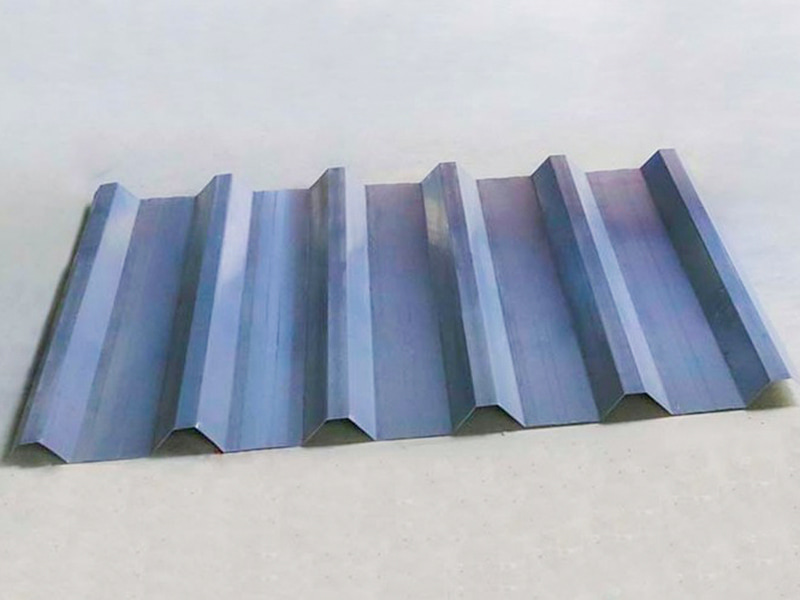

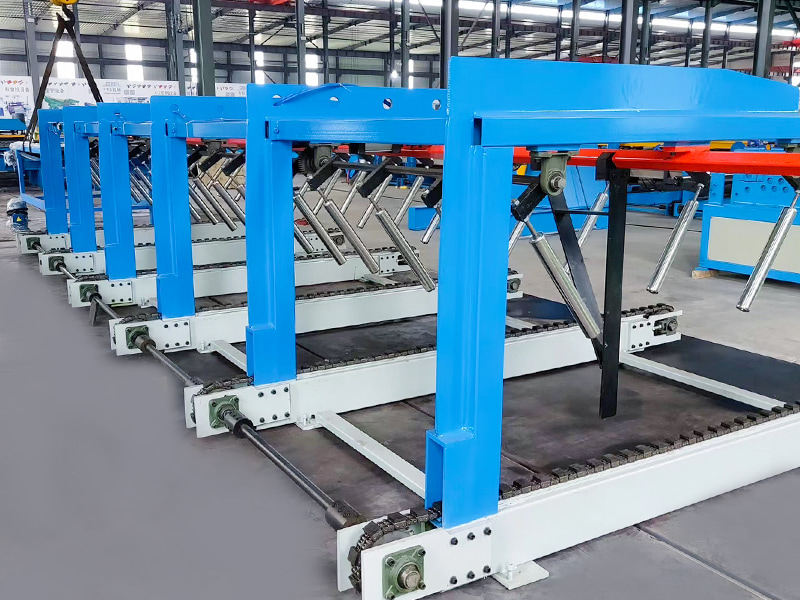

    Discharging Support: Forming bracket + variable frequency conveyor (prevents scratches and accumulation of finished sheets)

    Control Cabinet: Industrial PC + PLC (Siemens 1500 series), supporting access to sheet material database

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.36 I-Beam Steel Overall Welding Structure

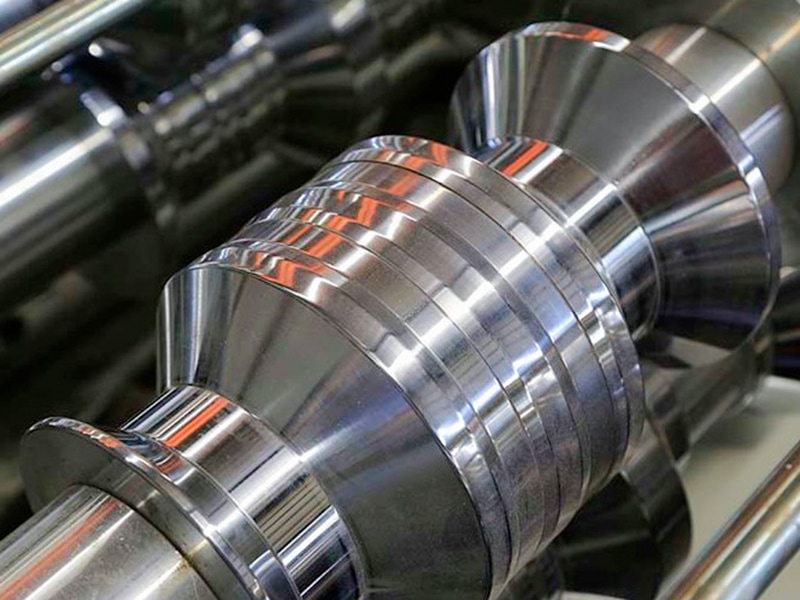

    Roller Material Cr12MoV Vacuum Hardening
    Main Shaft φ80，45# Steel Hardening and Tempering
    Forming Groups 20
    Main Motor Power 11KW
    Drive Method Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 5.5KW
    Cut Blade Cr12MoV Quenched, HRC58-62
    Uncoiler Load 10-Ton, With Loading Platform Hydraulic Station Motor Power Is 5.5KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 20 Meters
    Equipment Weight Around 8-Ton
    Raw Material Thickness 0.3-0.8mm Q235 Galvanized Coil
    Production Speed Over 25m/min
