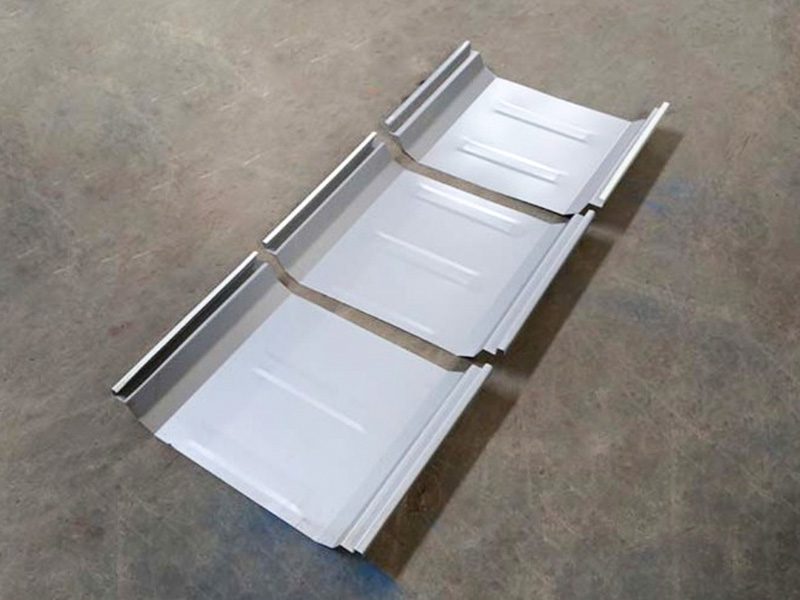

Compared with the common roofing sheet roll forming machine, the standing seam roll forming machine has a smaller body size, but the rolling tools are more advanced. First, the standing seam roll forming machine can produce metal roof panels from pre-coated steel, galvanized steel, zinc-aluminum/zinc-aluminum panels and occasionally aluminum panels. In fact, the standing seam roll forming machine produces hidden fasteners or concealed fixing roof panels, which are very popular in the US market. In the Chinese market, customers can usually find 470 and 820 concealed fixing standing seam roll forming machines, and in the North American market, especially in the Mexican market, people like to name them LR18 / KR18 or LR24 / KR24 standing seam roll forming machines. In addition, the most popular standing seam roll forming machine is a 610 joint hidden standing seam roof panel.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Product Information

  • Core Components Typically Include:

    Loader/Uncoiler: Loads and unwinds the metal coils.

    Guide/Straightening Device: Ensures the strip enters the forming area straight.

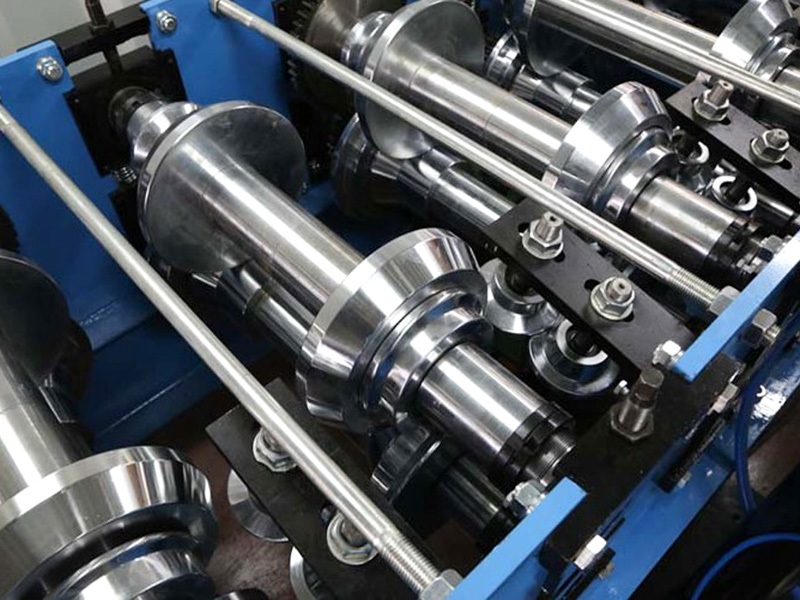

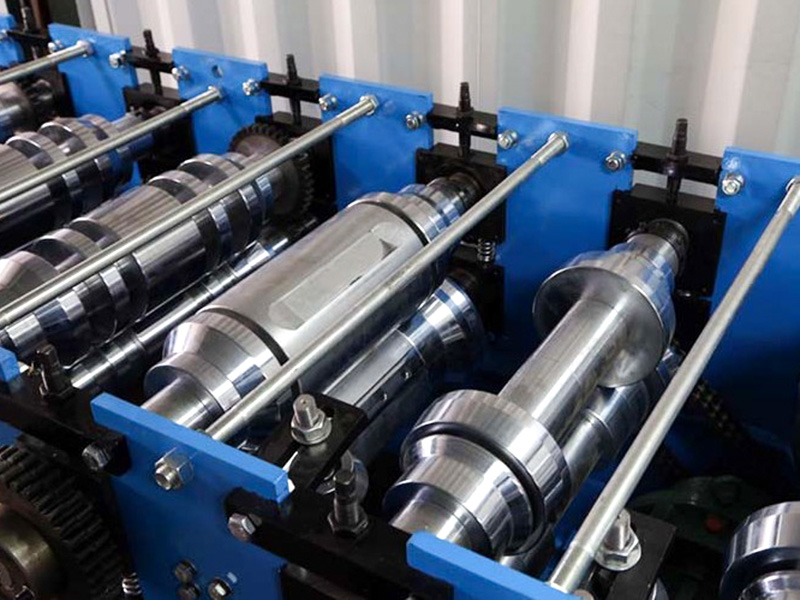

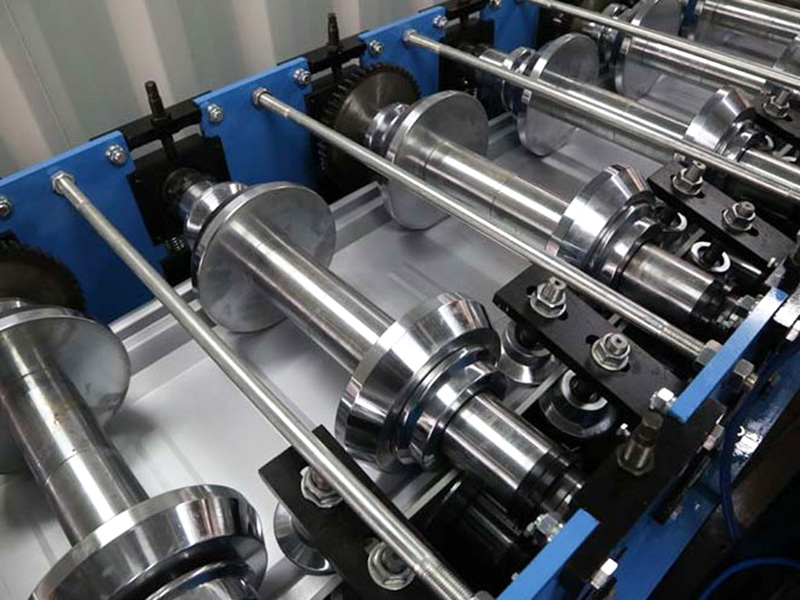

    Multi-Stand Roll Forming Frame: The core component, each frame containing one or more pairs of upper and lower forming rollers, is responsible for gradually bending the metal.

    Punching Unit: Automatic hydraulic stamping and forming. Different dies can be configured to meet different stamping requirements.

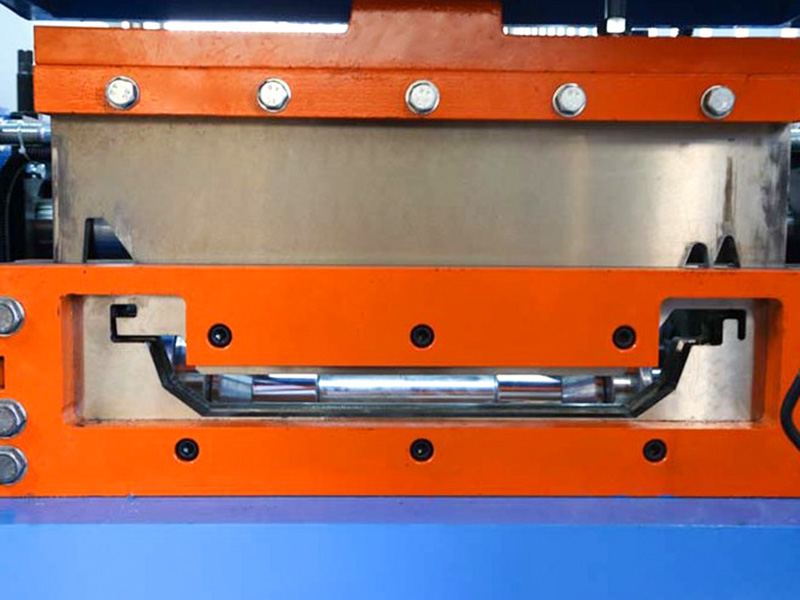

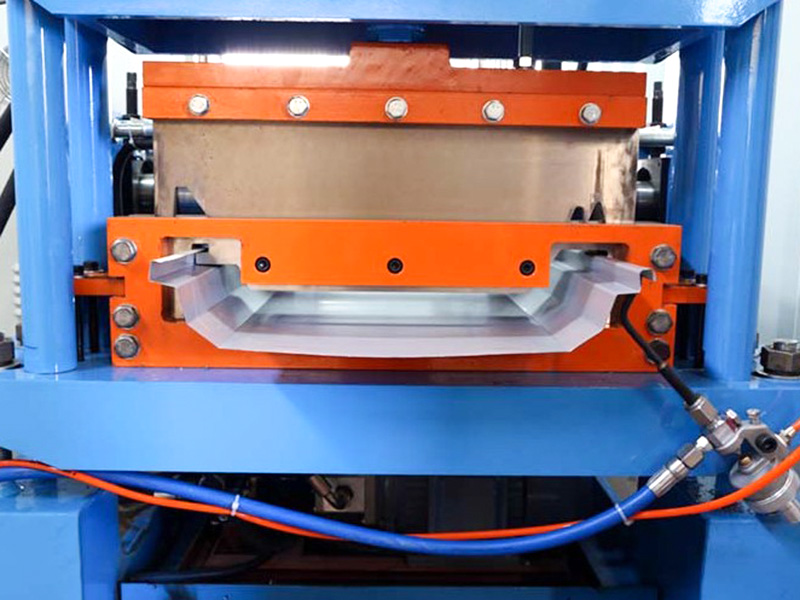

    Cutting Device: Typically, a hydraulic flying shear or stop shear, it precisely cuts the sheet material to the desired length as it continues to move.

    Discharging/Stacking System: Collects and stacks the formed and cut sheets.

    Control System (PLC): Controls the entire production line's operating speed, cutting length, and counting.

    Key Features and Applications of This Equipment:

    Highly Specific: The roller dies are designed based on the precise cross-sectional shape and dimensional requirements of the YX36.5-780 corrugated sheet material, ensuring accurate final product parameters such as corrugation height, corrugation pitch, and effective width.

    Efficient Production: Continuous operation is possible, with production speeds typically ranging from 15-30 meters per minute or higher, making it suitable for large-scale projects.

    Material Compatibility: Coils of various materials (steel, aluminum) and coatings (galvanized, color-coated PVDF/Polyester/SMP, etc.) can be processed, with thicknesses typically ranging from 0.4mm to 1.0mm (depending on the equipment's capabilities).

    Precise Cutting: Equipped with a high-performance cutting system, each plate is precisely cut to length.

    Automated Control: The PLC system enables parameter setting, operation monitoring, and fault diagnosis, ensuring easy operation.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.45 I-Beam Steel Overall Welding Structure
    Roller Material High Quality 45# Steel Fine-Machining, Quenched, Coated With Hard Chrome
    Main Shaft φ75，45# Steel Fine-Machining, Quenched
    Forming Groups 18
    Main Motor Power 7.5KW
    Drive Method Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 4.0KW
    Cut Blade Cr12MoV Quenched, HRC58-62
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 18 Meters
    Equipment Weight Around 6-Ton
    Raw Material Thickness 0.4-0.8mm Q235 Galvanized Coil
    Production Speed 12~15m/min
