Cooling Tower Cold Roll Forming Machine is a specialized roll-forming production line. It can continuously process steel coils/strips  (such as galvanized steel or stainless steel) at ambient temperature into specific cross-sectional profiles required for cooling tower casings and internal structural components.
Jiangyin Hailong Cold Bending Machinery Technology Co., Ltd. is Cooling Tower Cold Roll Forming Machine Supplier in China. With over 1200 customer relationships, we service a multitude of industries with custom roll forming equipment, supply Cooling Tower Cold Roll Forming Machine for sale.
Get A Quote
PREV：No previous articleNEXT：Cable Tray Roll Forming Machines
  • Product Information

  •  Core Features:

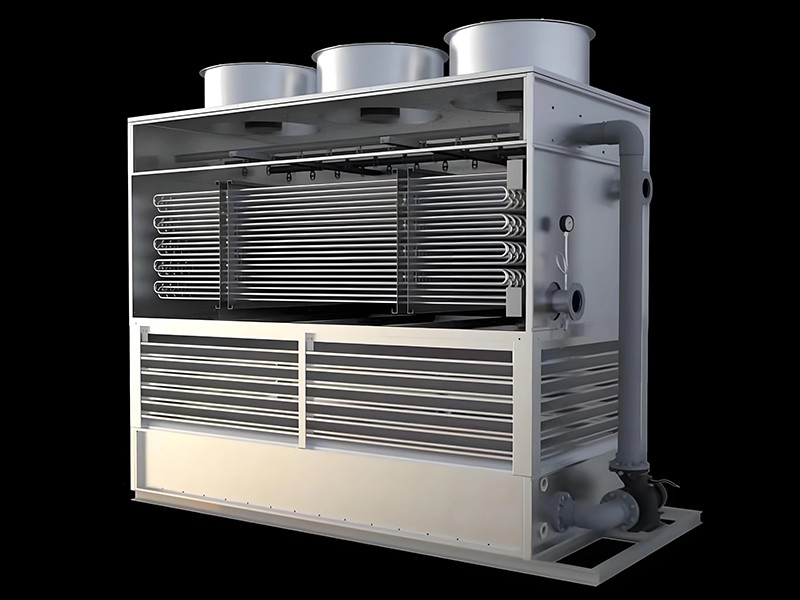

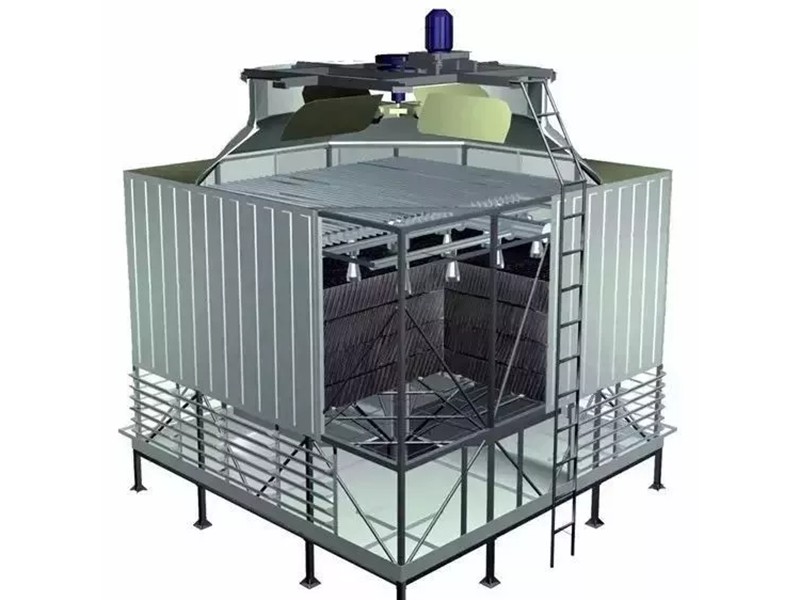

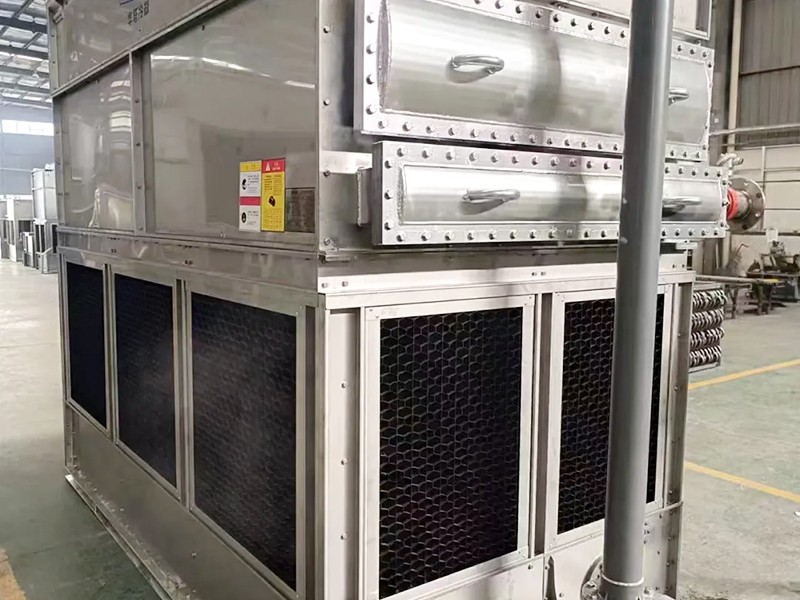

    1). Tailored for Cooling Towers: The profiles produced typically feature cross-sections unique to cooling towers—examples include curved corrugated panels, stiffener plates, fan stack enclosure panels, and vertical frame columns.

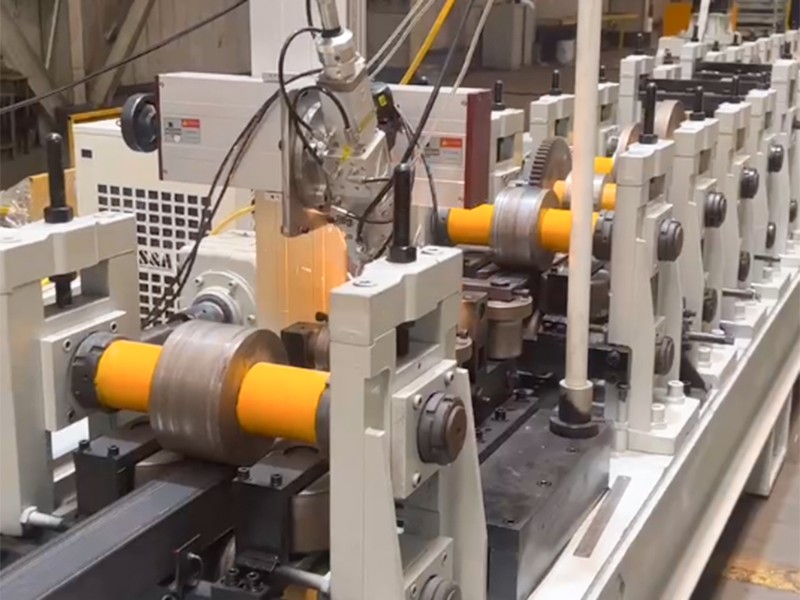

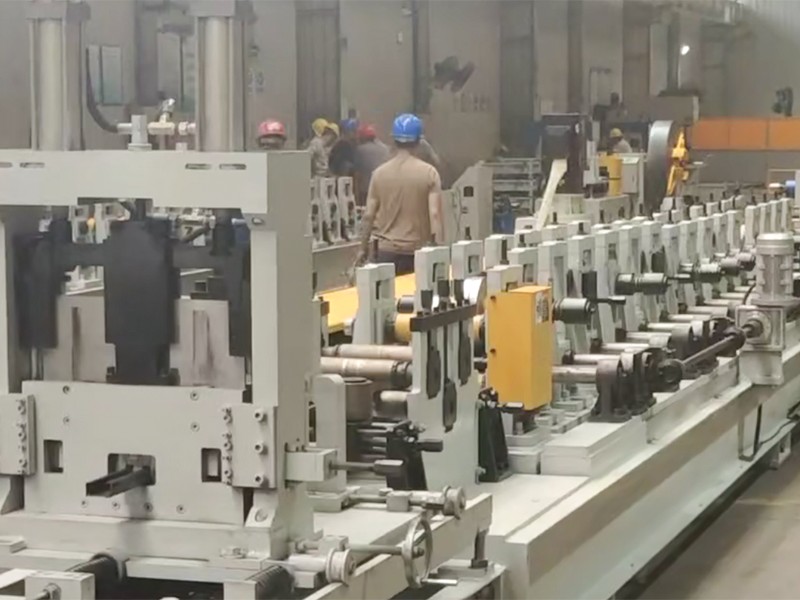

    2) Cold Roll Forming Process: Utilizing a series of progressive roller sets (ranging from as few as 10–15 sets to over 30 sets), the steel strip is gradually bent into the desired shape without the application of heat, thereby preserving the material's mechanical properties.

    3). Continuous and Efficient: The system integrates various processes—such as uncoiling, leveling, punching, forming, and cutting—to achieve a fully automated, streamlined production workflow.

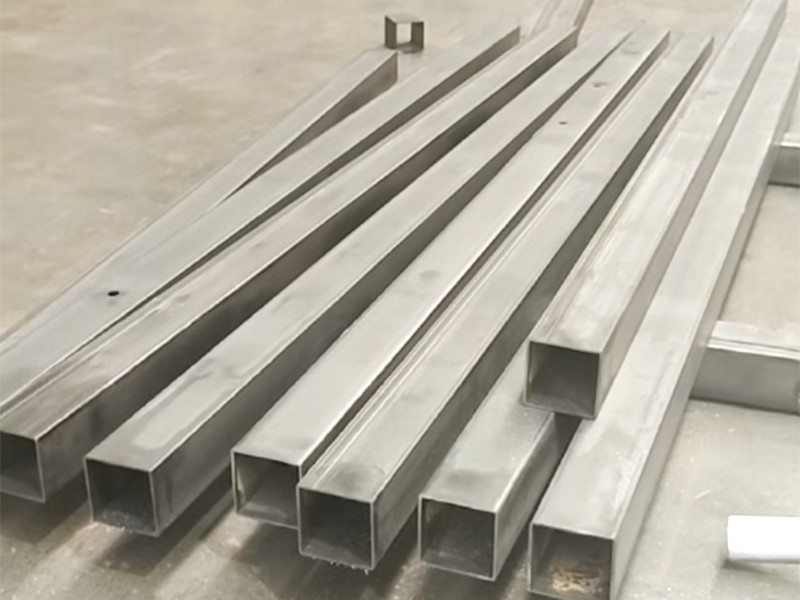

    Typical Output Products:

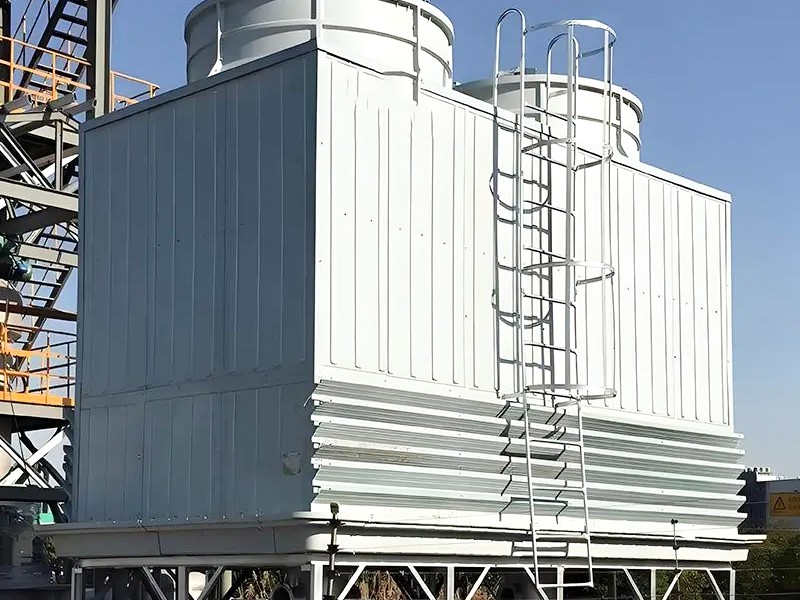

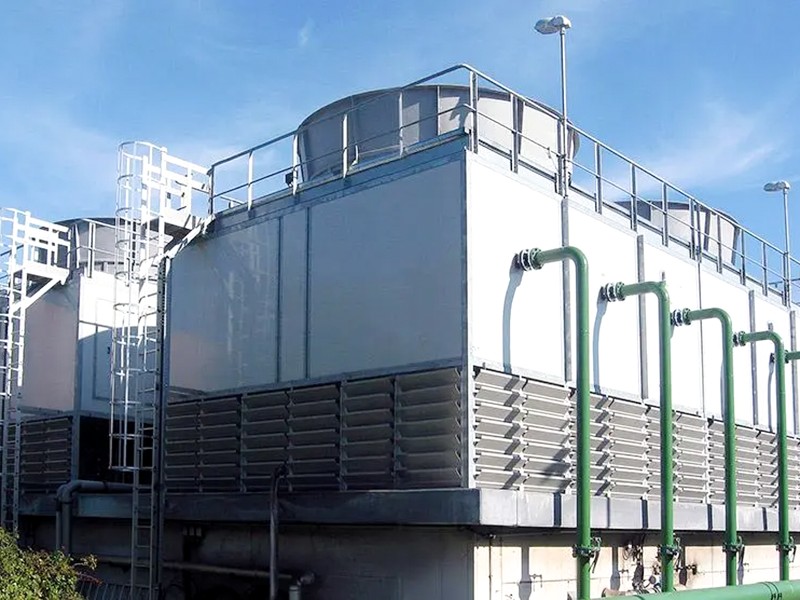

    Cooling tower casing panels (often featuring trapezoidal or curved corrugations to enhance structural rigidity)

    Curved enclosure panels for fan stacks/cylinders

    C-channel and Z-purlins for internal support frameworks

    Fill media support brackets and drift eliminator side plates

    Main Components:

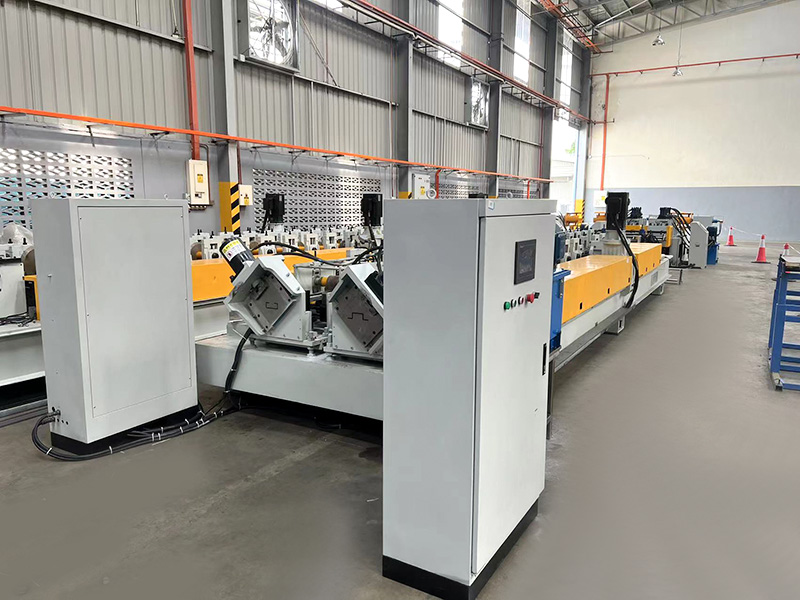

    Uncoiler → Leveler → Servo Feeder (with optional punching unit) → Main Roll Forming Machine → Curvature Adjustment Device (if required) → Cut-to-Length Unit → Collection Table

    Technical Parameters

    Item Parameter Remark
    Machine Base National standard No.40 I-beam steel Overall welding structure
    Roller material Cr12Mo1V1 Vacuum hardening HRC60~62
    Main Shaft φ90, 40Cr Hardering and tempering
    Forming groups 16-18
    Main motor power 25 kW, K 107
    Main drive gear box X180 (X180 Helical gear box)
    Cut-off mode Servo tracking hydraulic cut-off Hydraulic station motor power is 7.5 kW
    Punching mode Punching machine
    Uncoiler Load 5-Ton, with loading platform Hydraulic station motor power is 2.2 kW
    Control system Simens/Scheider PLC
    Hydraulic system BeiJin Huade brand
    Total length of production line Around 30 meters
    Equipment weight Around 12-Ton
    Raw material thickness 2.0-3.0mm Q235 galvanized coil
    Production speed 10-15m/min
