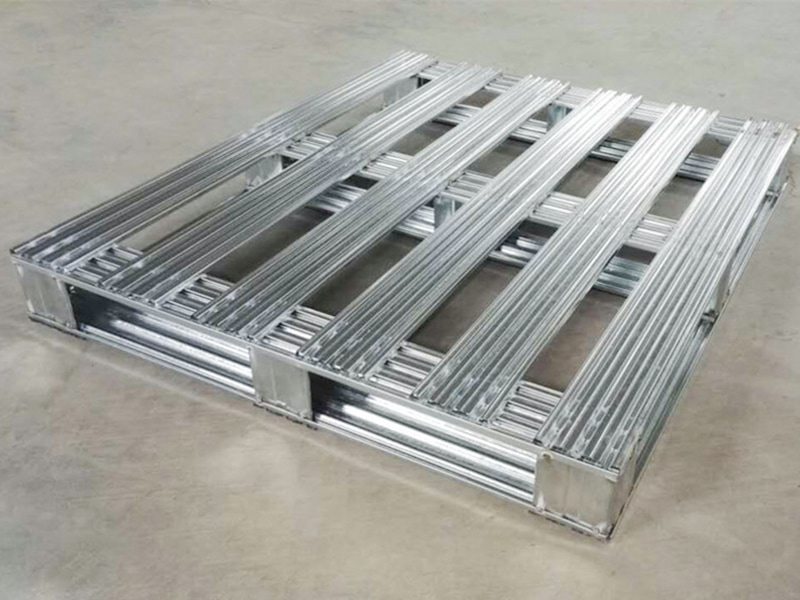

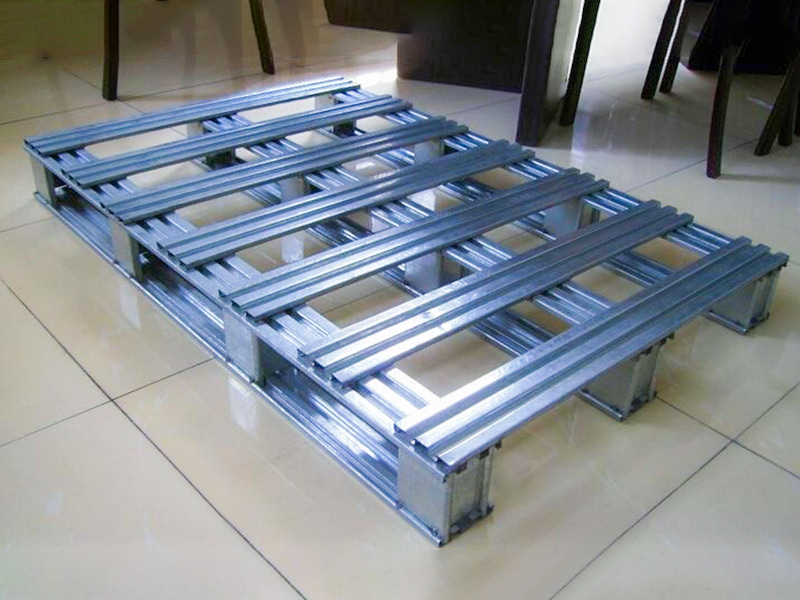

The Pallet Profile Roll Forming Machine is an intelligent rolling equipment specially used for producing the core components of all-steel pallets in logistics and warehousing systems. It continuously cold-bends high-strength steel coils (Q235/Q345, thickness 1.0-2.0mm) into standardized profiles such as columns, beams, and panel reinforcements through multiple high-strength rollers, achieving high load-bearing capacity, long service life, and modular rapid assembly of pallets.
Get A Quote
PREV：Garden Bed Roll Forming MachineNEXT：Earthquake Resistance Shear Wall Production Line
  • Product Information

  • Core Functions and Technical Features:

    (1). Super strong load-bearing structure

    Panel reinforcement: Ω-shaped corrugated ribs (height 15-25mm), increasing the panel bending stiffness by 300%.

    Beam lock: self-locking dovetail groove design, plug-in pull-out resistance ≥5kN (no welding/bolts required).

    (2). High-efficiency anti-corrosion process

    Base material: hot-dip galvanized steel sheet (zinc layer ≥80μm)

    Online electrostatic spraying epoxy coating (thickness ≥60μm), salt spray corrosion resistance ≥1000 hours.

    (3). Intelligent flexible production

    Quick roller change system: switching pallet specifications (1200×800/1200×1000mm) takes only 20 minutes.

    Laser coding marking: automatic engraving of load level (A/B/C level) and production batch QR code.

    Core System Composition of the Equipment:

    Hydraulic uncoiler: hydraulic expansion bearing loads 5 tons of steel coils, EPC correction accuracy ±0.3mm.

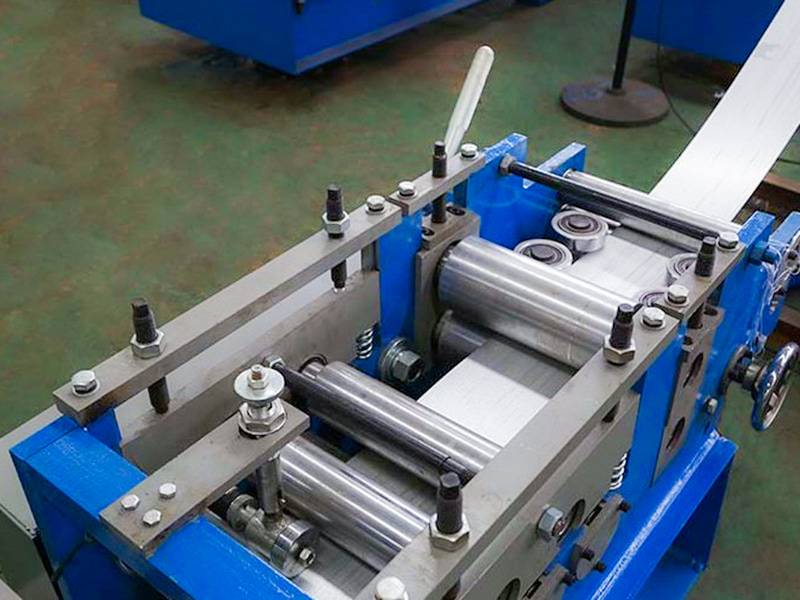

    High-strength leveling machine: 9 rollers straighten 2.0 mm-thick plates to eliminate sickle bend (straightness ≤1mm/m).

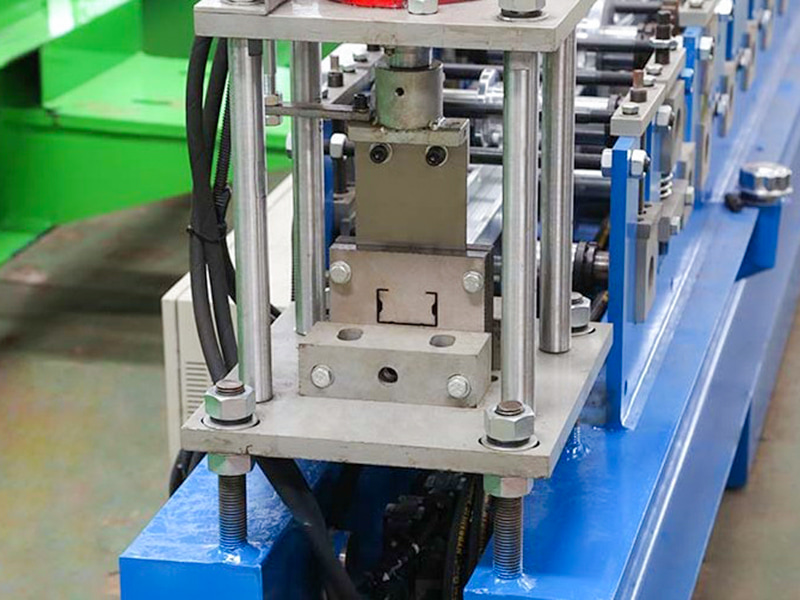

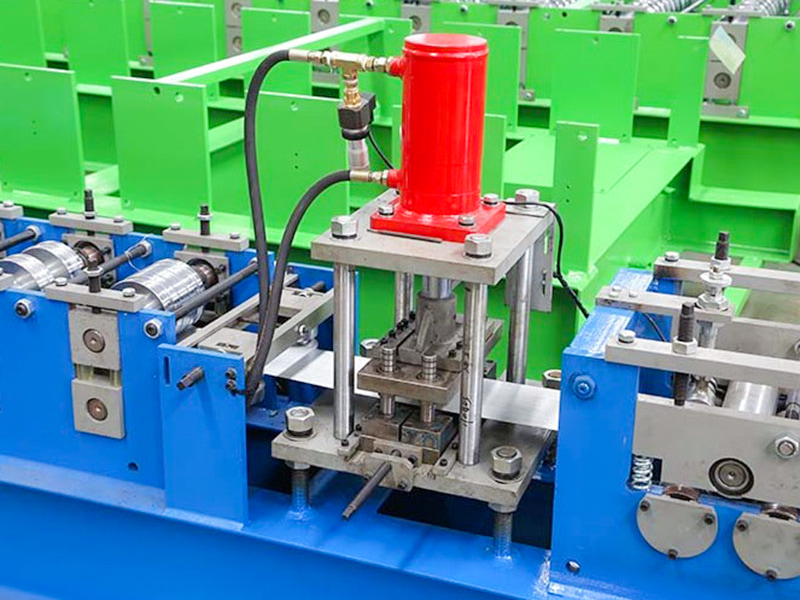

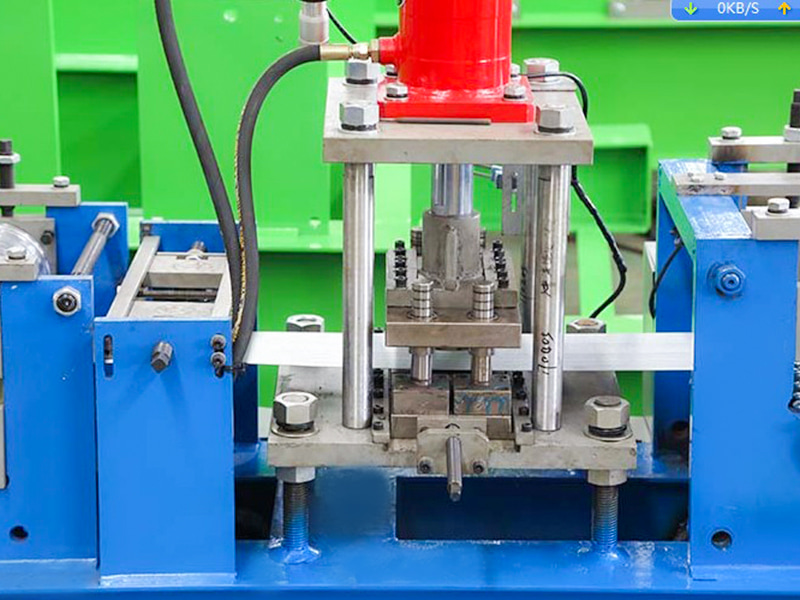

    Precision Punching Unit: Servo die-punching synchronizes punching:
    • Column connection holes (Φ12 ± 0.1mm)
    • Forklift holes (100×50 ± 0.2mm).

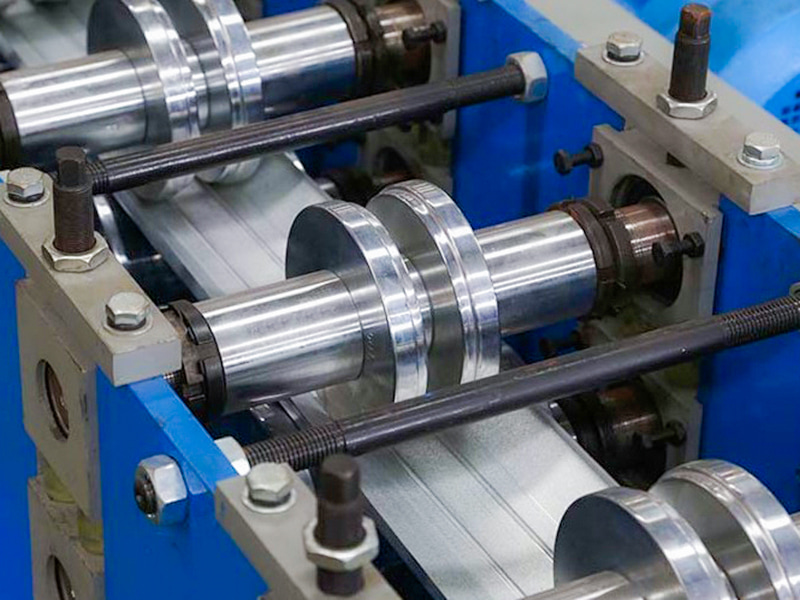

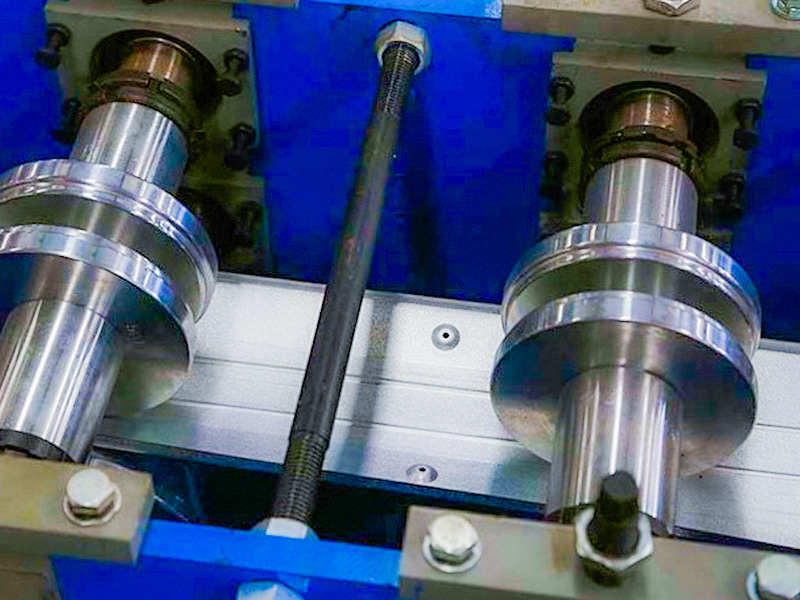

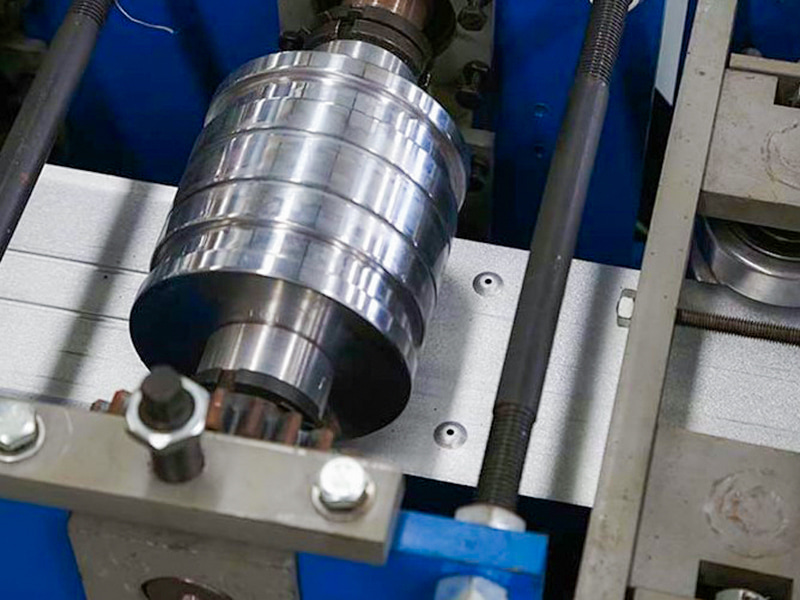

    Compound Section Forming Machine (Core Module): 18-22 sets of carbide rollers (SKD11), performing step-by-step pressing

    Online electrostatic spraying: Powder recovery rate ≥ 98%, coating curing temperature 200°C ± 5°C (adhesion level 0).

    Servo cut-to-length: Flying saw cutting (cut inclination ≤ 0.5°), length range 0.5-2.5m (tolerance ± 0.3mm).

    Intelligent Palletizing Robot: Visually identifies profile types and sorts and stacks (columns/beams/panels in separate warehouses.

    Digital Twin Control System: Real-time monitoring of roller pressure and temperature, predicts maintenance cycles, and maintains a downtime rate of ≤ 0.5%.

    Industry Application Value:

    Cost Reduction and Efficiency Improvement: Single-line production capacity reaches 50-80 meters per minute, 15 times faster than welding processes, reducing manufacturing costs by 40%.

    Space Optimization: Nestable design (empty pallets can be stacked ≥ 5 layers), saving 60% in storage space.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.40 I-Beam Steel Overall Welding Structure
    Roller Material Cr12MoV Steel Vacuum Hardening
    Main Shaft φ75，40Cr Hardening and Tempering
    Forming Groups 20
    Main Motor Power 18.5KW, K Series
    Main Drive Gear Box Chain & Gear
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 22 KW
    Punching Mode Punching Device
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2 KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 28 Meters
    Equipment Weight Around 8-Ton
    Raw Material Thickness 1.0-2.0mm Q235 Galvanized Coil
    Production Speed 156~20m/min
