Garden Bed Roll Forming Machine

Core Functions and Technical Features:

(1). Bionic aesthetic design

Curved surface modeling: Roller-pressed wavy/arc-shaped sections (wavelength 100-300mm) simulate natural lines.

Surface texture: Roller-engraved wood grain/stone grain replaces real wood (reducing deforestation).

Multi-color coating: Online lamination/PVDF spraying to achieve RAL color card customization (such as mint green, terracotta brown).

(2). Functional structure optimization

Drainage system: Pre-set drainage troughs + diversion holes at the bottom (to prevent water accumulation and root rot).

Quick assembly: snap-on connection design, tool-free splicing (wind pull-out resistance ≥ 500N).

Soil slope protection: stepped planting trough with anti-slip bumps (slope adaptation ≤ 30°).

(3). Weather resistance

Base material: aluminum-magnesium-zinc-plated steel plate (AZ150, corrosion resistance is 3 times that of a galvanized plate).

Process: Roller mirror polishing (Ra ≤ 0.4μm) + nano-level dry film lubrication to protect surface integrity.

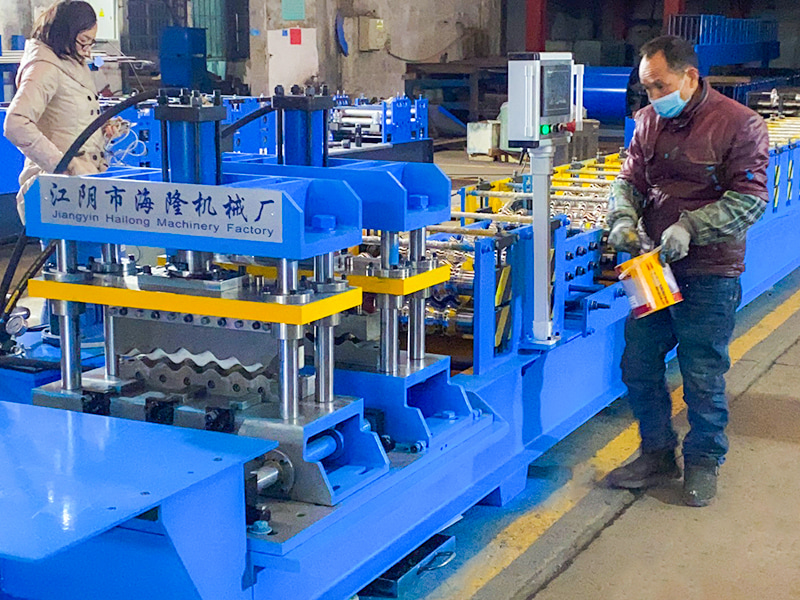

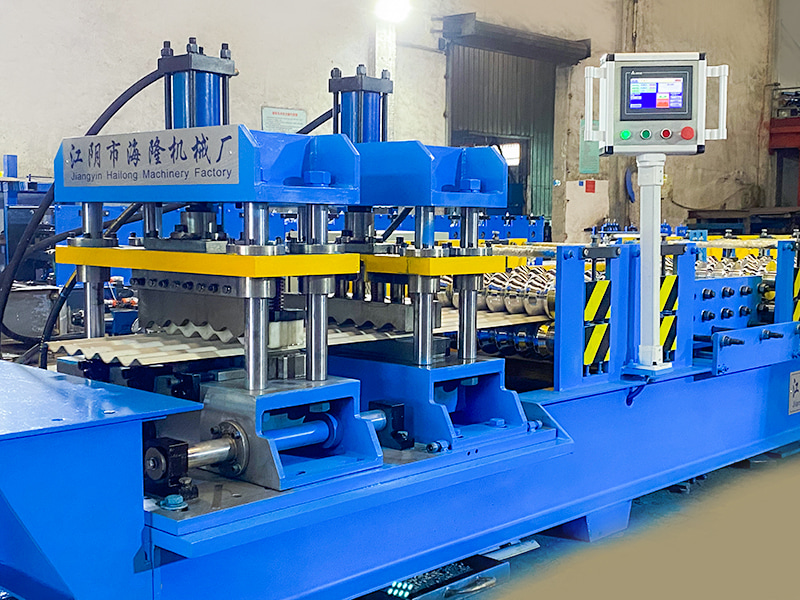

Equipment Core System Composition:

Double-station unwinder: automatic switching between color-coated plate and galvanized plate coil (thickness 0.6-1.5mm).

Precision leveling machine: 7-roll straightening to eliminate coil stress, flatness ≤ 0.3mm/m (to ensure smoothness of curved surface).

Texture pressing unit (core module): Roller with laser-engraved texture, adjustable pressure (20-50 tons), to achieve wood grain/stone grain transfer.

Multi-surface forming machine: 12-16 sets of special rollers with progressive bending, supporting S-shaped and C-shaped composite surfaces (radius of curvature R50-R300mm).

Drain hole punching system: Servo punch presses synchronously punch out an array of Φ5mm drain holes (hole spacing 50-100mm).
Laminating/spraying unit (optional):
• Hot laminating machine: Applying 0.2mm PVC film (imitation stone)
• Electrostatic spraying: 40μm PVDF coating.

Intelligent cutting and stacking: Servo flying shears for cutting to length (0.5-2m), robotic suction cup stacking (anti-scratch coating).

IoT control system: Mobile app remotely monitors production, supporting flexible switching between small batches and multiple varieties (database of ≥20 patterns).

Industry Application Value:

Municipal engineering efficiency improvement: A single machine can produce 15,000 meters of guardrail per day, 10 times faster than manual concrete framing installation.

Commercial property premium: Customized curved flower beds enhance landscape quality (project sales price +5-8%).

Sustainability:

80% reduction in wood consumption (200 trees protected per kilometer of guardrail)

90% lower carbon emissions than concrete (0.2kg CO₂/m² vs. 2kg CO₂/m²)
