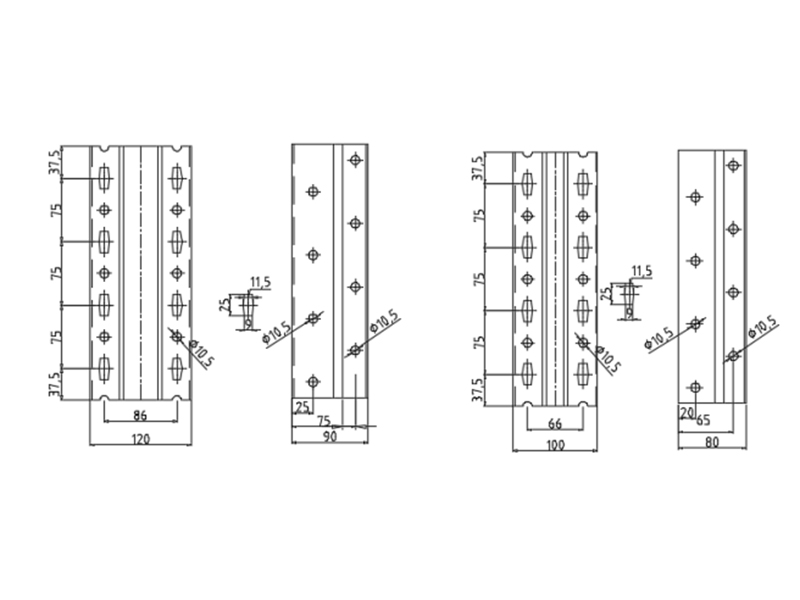

Upright Roll Forming Machines

Key Advantages of the Equipment:

Extremely High Production Efficiency: The machine can operate 24/7 at high speed, producing tens of meters of profiles per minute, far exceeding traditional cutting, welding, and stamping processes.

Excellent Material Strength: The cold work hardening effect of the cold bending process increases the yield strength of the material, making the formed components stronger and more durable than the original sheet metal.

High Material Utilization: Virtually zero waste. The coils are continuously rolled and formed, with only the final cut-to-length loss occurring, significantly reducing the overall process cost.

Product Precision and Consistency: Precision rollers and CNC systems ensure that each product has highly consistent dimensions, shape, and hole placement. This is crucial for standard racking systems that require fast and safe assembly.

Complex Cross-Section Forming Capability: Complex, closed-end cross-sections, unachievable with traditional press brakes, can be formed in a single pass. These cross-sections offer an optimal strength-to-weight ratio.

Highly Automated: The entire production line integrates uncoiling, leveling, forming, punching, cutting, and winding processes, requiring only one or two operators, significantly reducing labor costs.

Equipment Components:

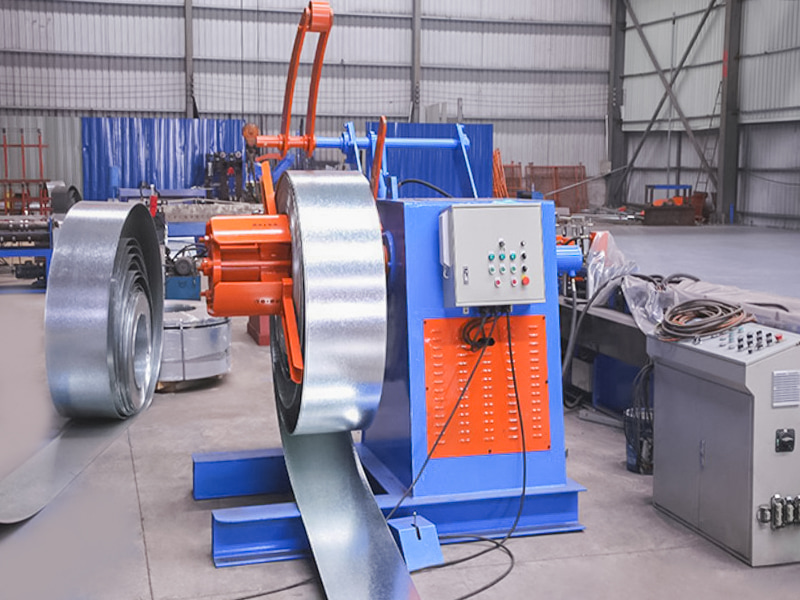

Uncoiler & Leveller: Holds and levels the coils, ensuring a flat surface upon entering the main machine.

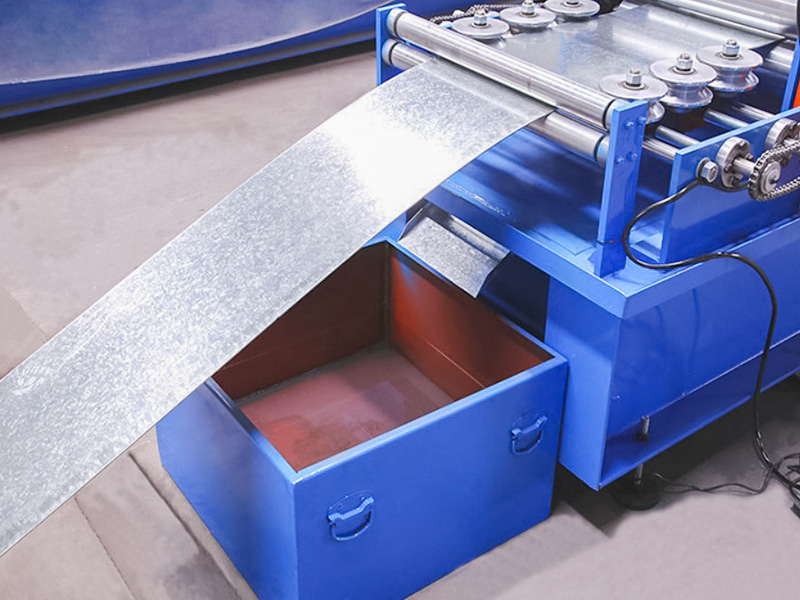

Guide & Feeding Device: Accurately feeds the material into the first set of rollers.

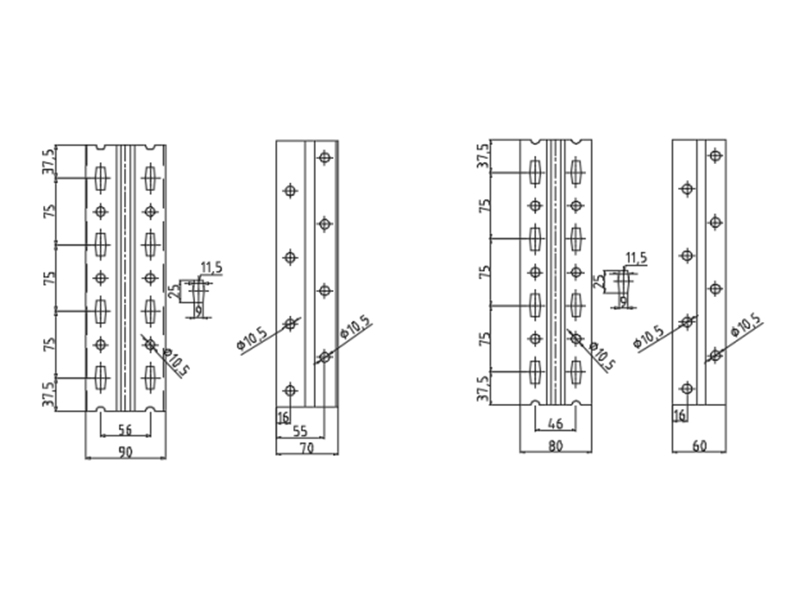

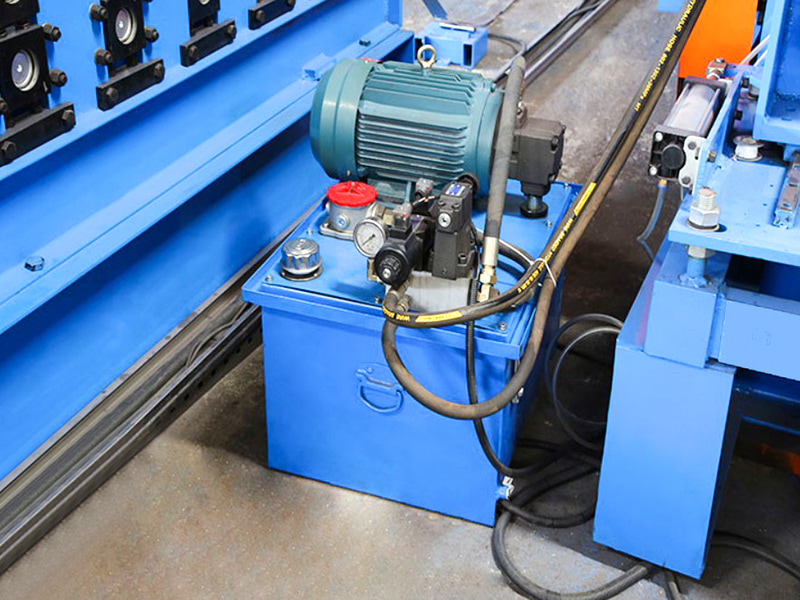

Online Punching System (Core Functional Module): Typically, a high-precision servo-hydraulic system or a mechanical fly-punch mechanism, capable of delivering instantaneous, high-pressure punching.

Punching Synchronous Control System: A PLC control system ensures precise, synchronized movement of the punches as the material moves, completing punching instantly and retracting quickly without disrupting the material's continuous flow. It also controls the spacing (hole pitch) between punches.

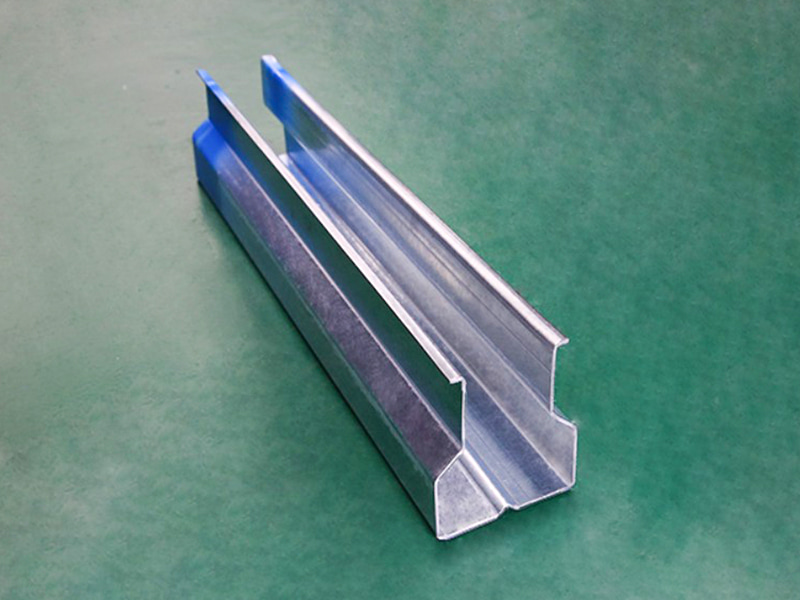

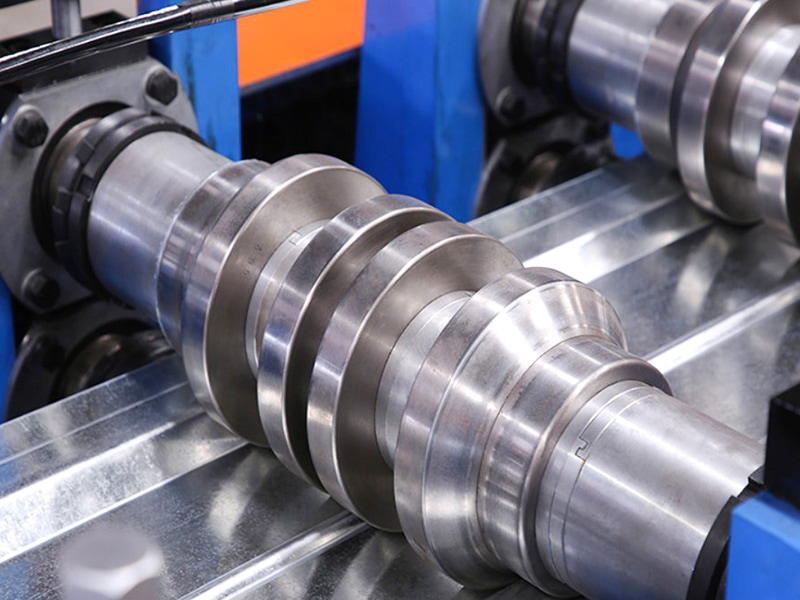

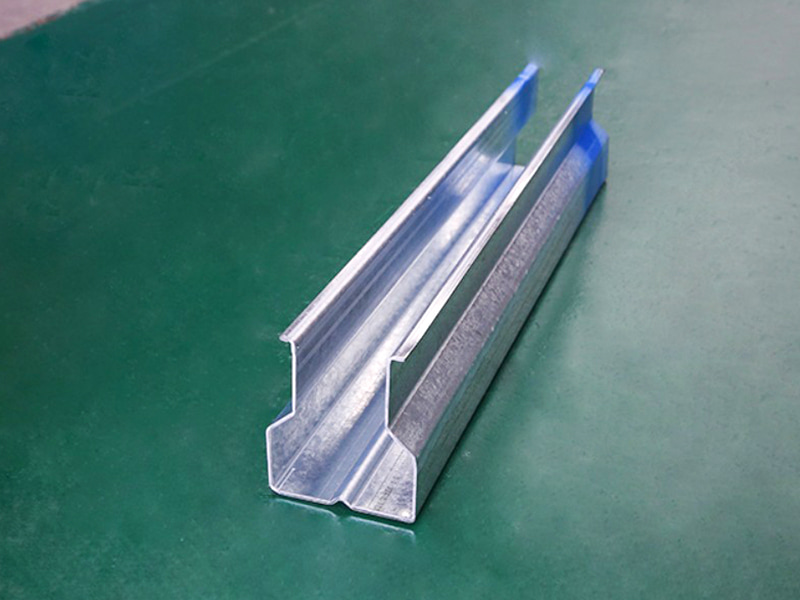

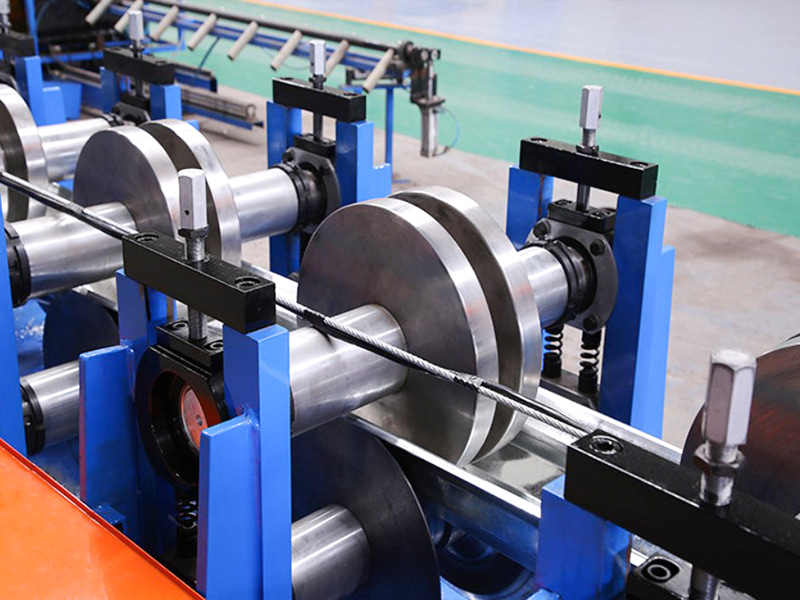

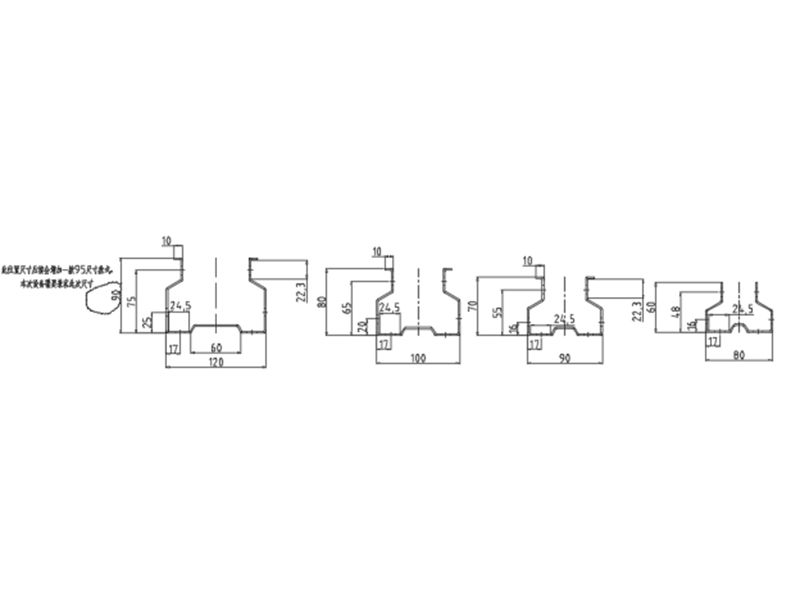

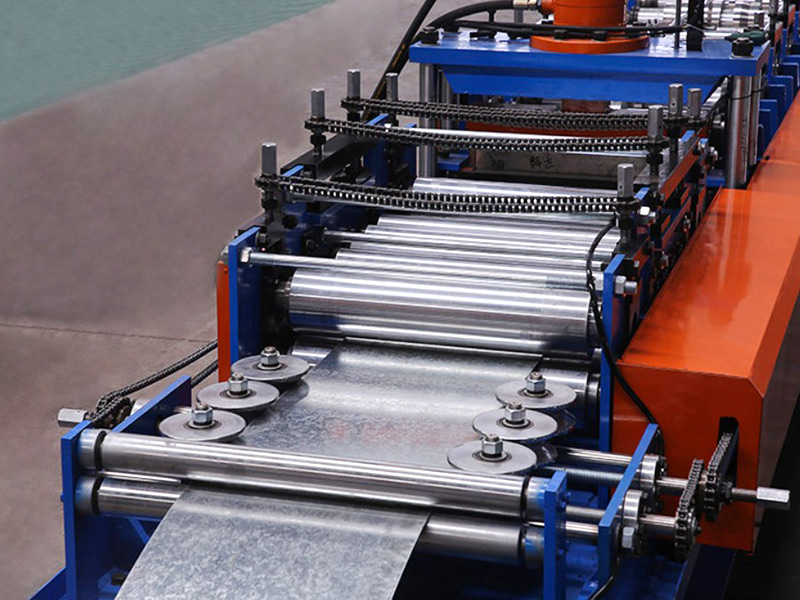

Cold Roll Forming Machine: Consisting of multiple pairs (typically 16-24 or more) of precision-engineered die steel rollers, these machines gradually bend the flat strip into the final column cross-section.

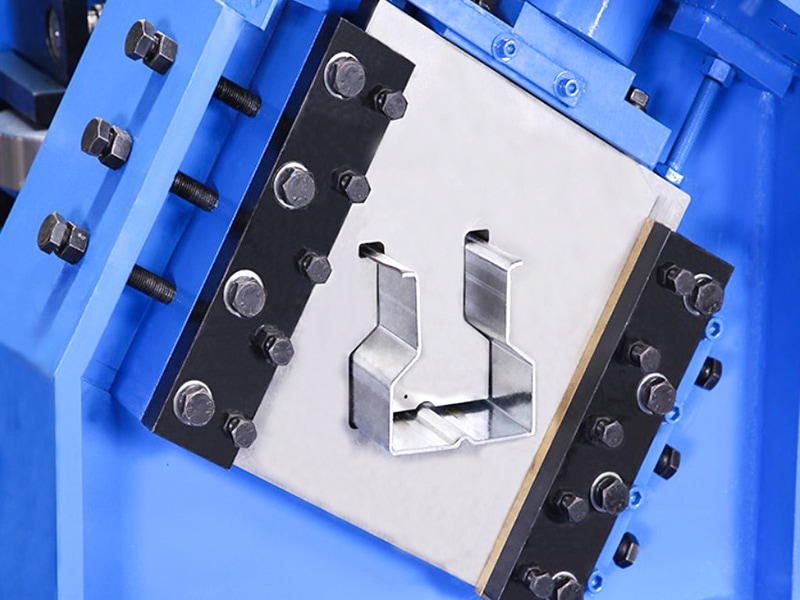

Cutting System (flying saw or hydraulic cutting): Cuts the continuously formed columns to the desired length without stopping the material.

Receiving Table: Receives and organizes finished products.

CNC Electronic Control System: The operator uses a touchscreen to set all parameters (such as roller data corresponding to the cross-section, hole pitch, cutting length, production speed, etc.) and monitor the entire production process.
