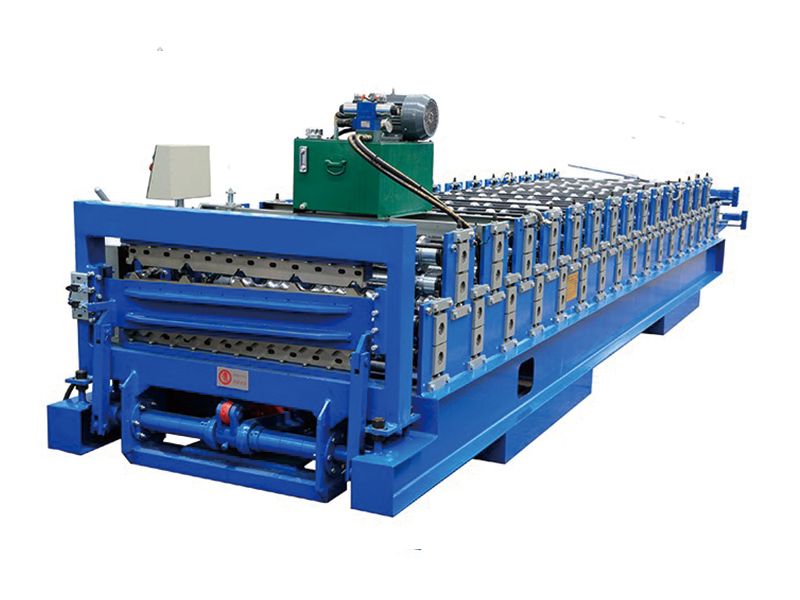

912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine
912-1025 Type Double Layer Roll Forming Machine

912-1025 Type Double Layer Roll Forming Machine

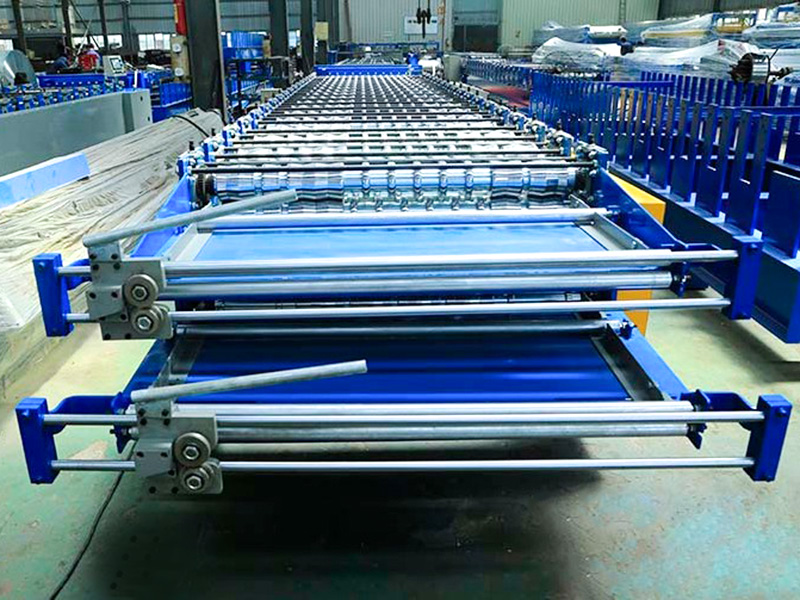

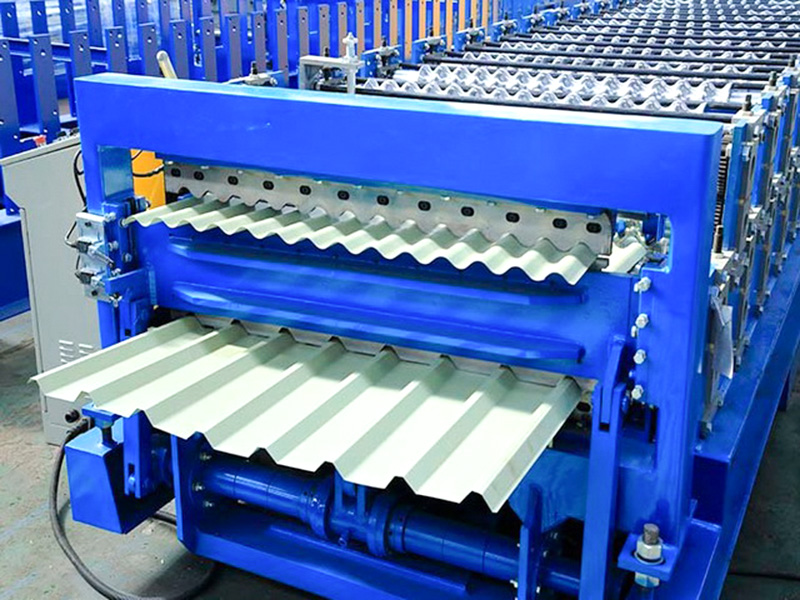

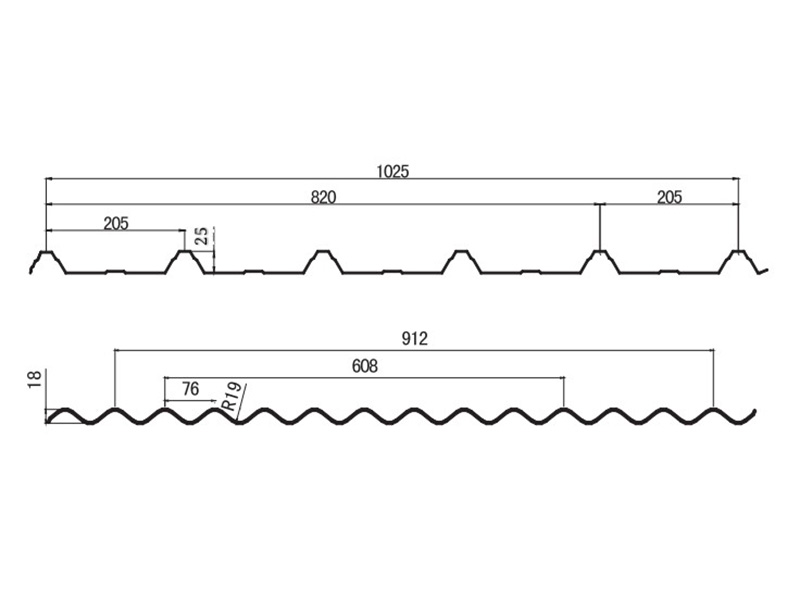

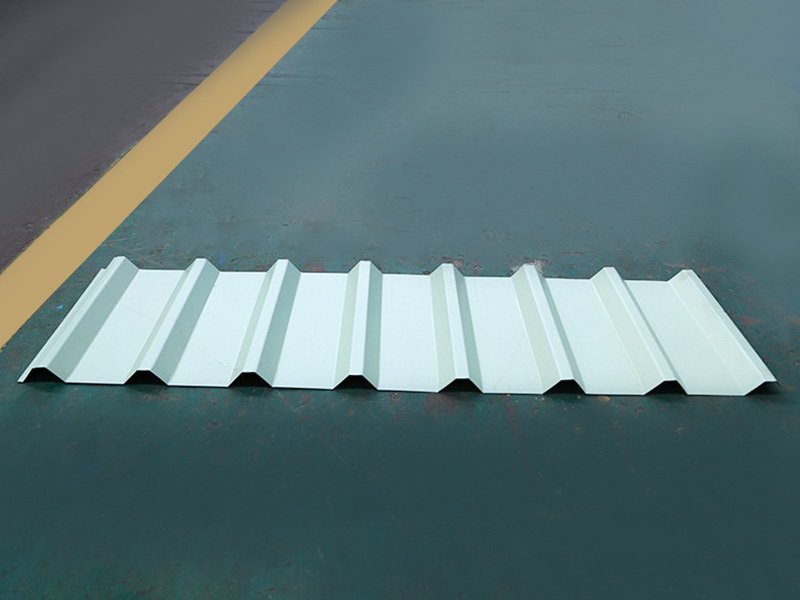

Compared with the single-layer roofing sheet roll forming machine, the double layer roll forming machine is designed to produce two different types of metal sheets, which can be a trapezoidal roof and a roof/wall cladding sheet; Or one trapezoidal roofing sheet and one corrugated sheet; or one trapezoidal sheet and one metal roof tile; General speaking, you can use the same double layer roll forming machine to produce any two kinds of metal roof panels. The double-layer roll forming parts on this two-layer roll forming machine cannot work at the same time, which means that each of the roll forming systems (top roll forming and bottom roll forming) will stop when the other is working. The double-layer roll forming machine share the same electric motor, and the operation between the top and bottom roll forming parts is changed by a clutch. 912-1025 Type double-layer roll forming machine can produce YX25-205-1025 roofing sheets and YX18-76-912 corrugated sheet.
Jiangyin Hailong Machinery Factory is 912-1025 Type Double Layer Roll Forming Machine Supplier in China. With over 1200 customer relationships, we service a multitude of industries with custom roll forming equipment, supply 912-1025 Type Double Layer Roll Forming Machine for sale.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Product Information
  • Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.45 I-Beam Steel Overall Welding Structure

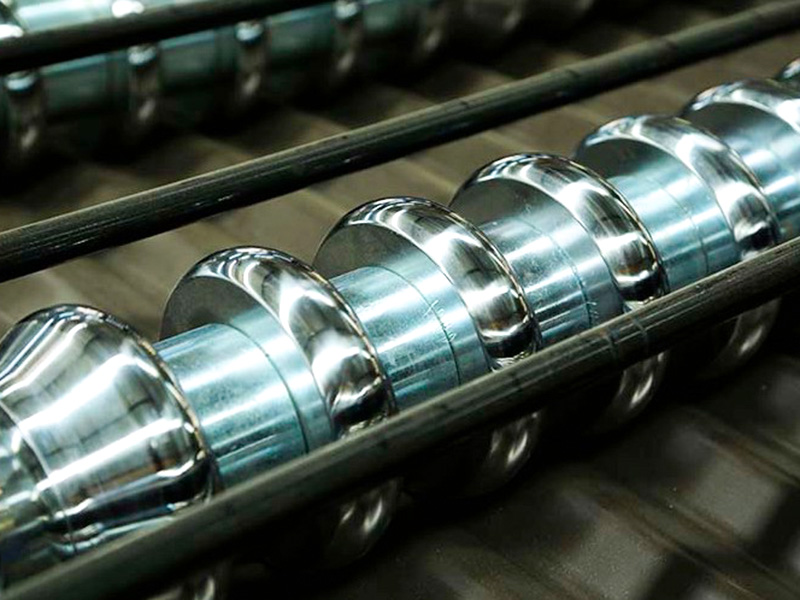

    Roller Material High Quality 45# Steel Fine-Machining, Quenched, Coated With Hard Chrome
    Main Shaft φ75，45# Steel Fine-Machining, Quenched
    Forming Groups December 20th
    Main Motor Power 7.5KW
    Drive Method Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 4KW
    Cut Blade Cr12MoV Quenched, HRC58-62
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2KW

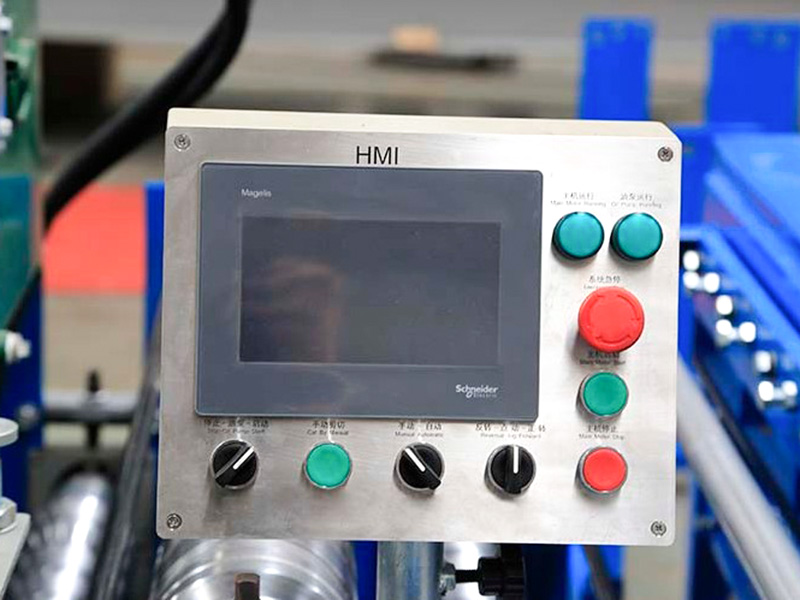

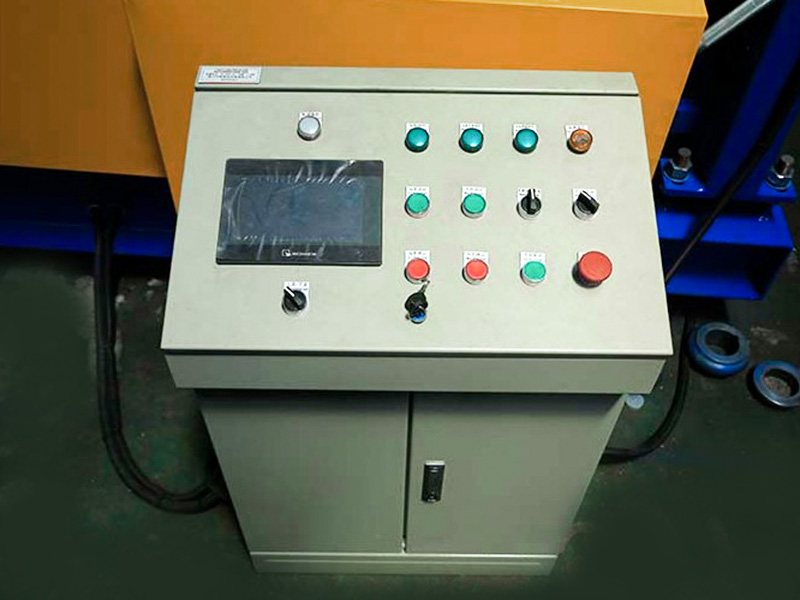

    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 20 Meters
    Equipment Weight Around 8-Ton
    Raw Material Thickness 0.3-0.8mm Q235 Galvanized Coil
    Production Speed 15~20m/min
