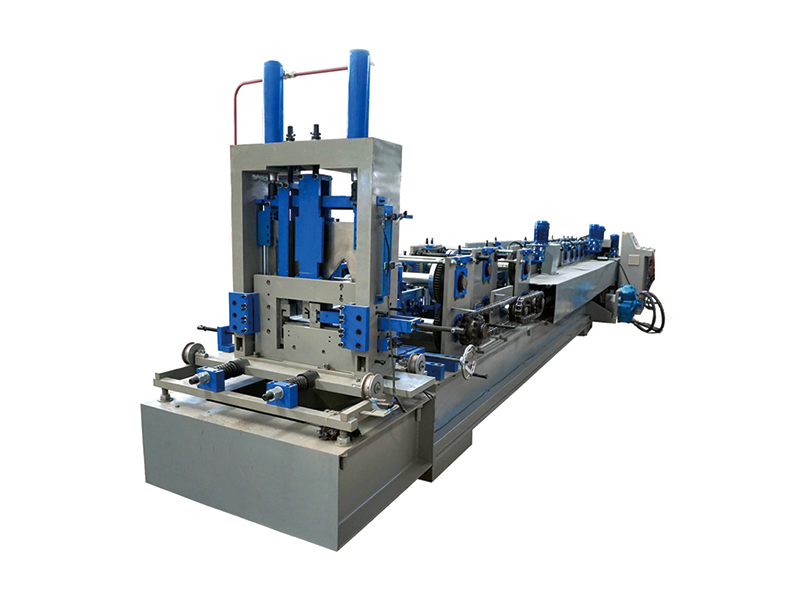

80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines
80-300 Type CZ Purlin Roll Forming Machines

80-300 Type CZ Purlin Roll Forming Machines

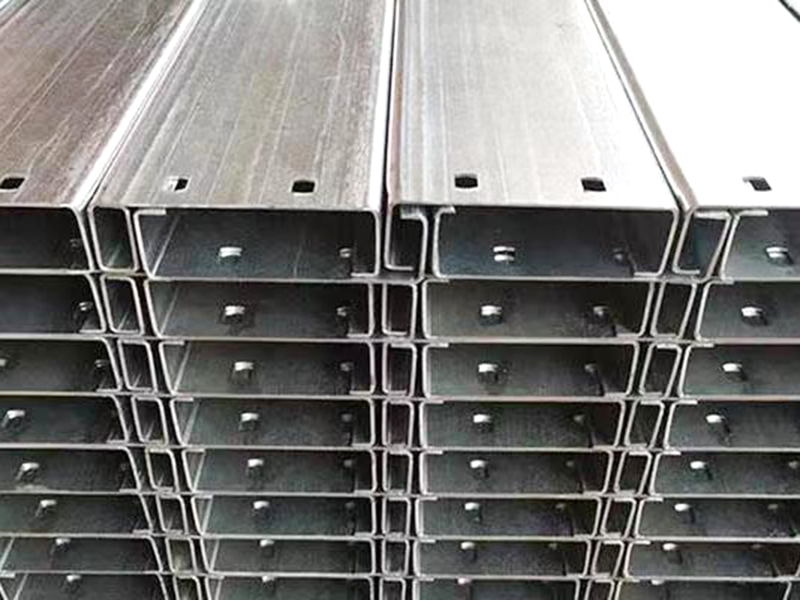

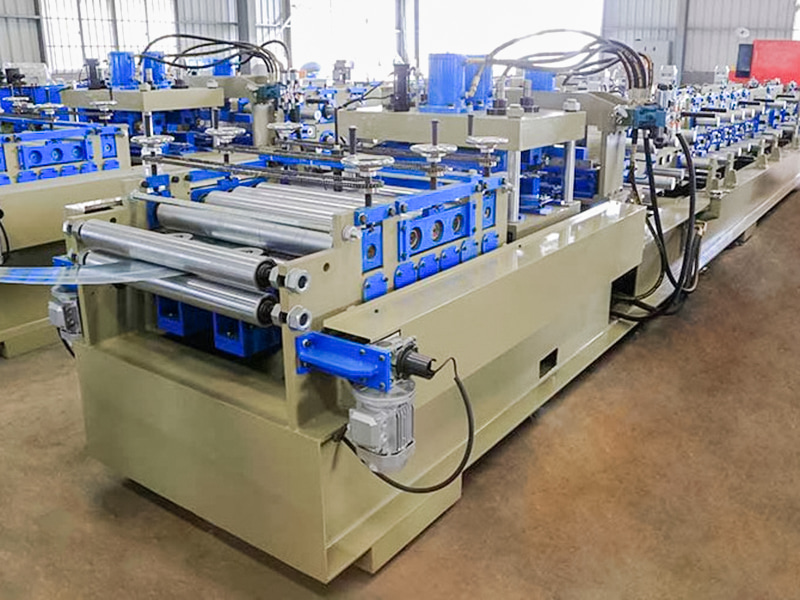

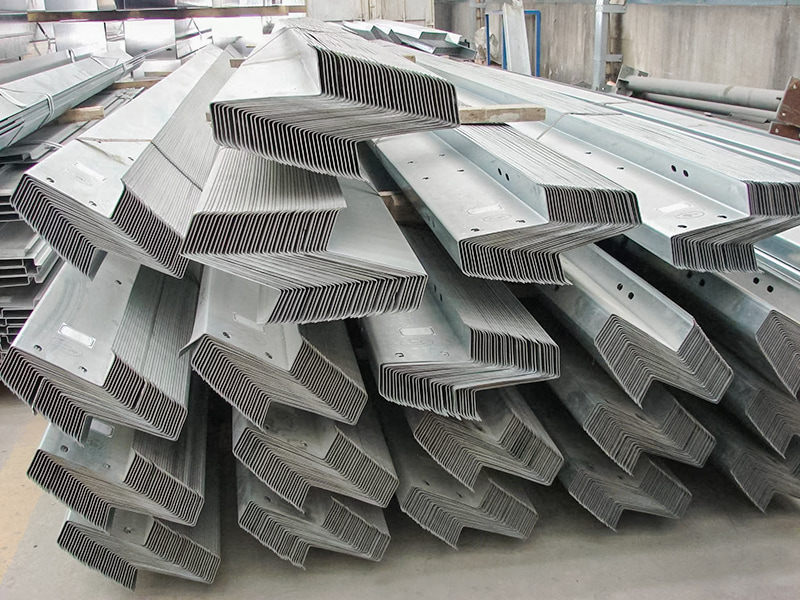

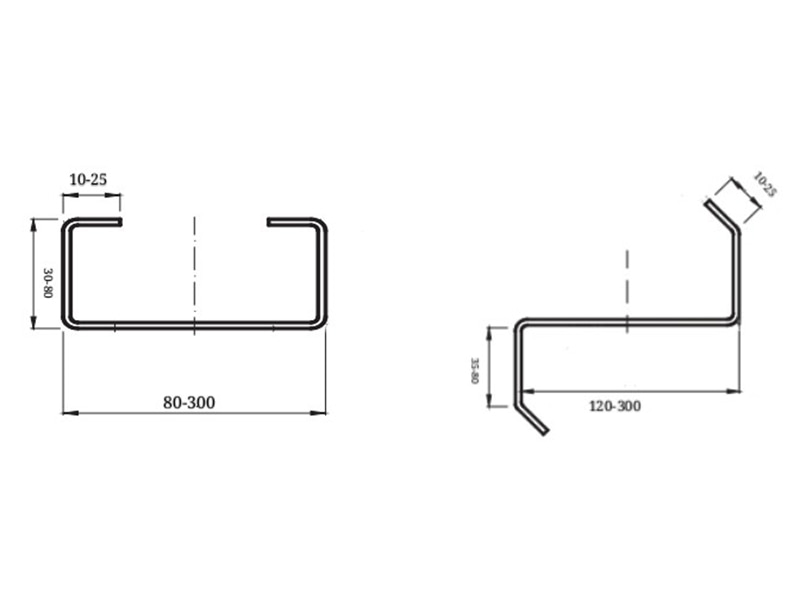

The CZ Purlin Roll Forming Machine is a highly automated industrial machine specifically designed for the efficient and continuous production of C/Z-section purlins. It is widely used in steel structure construction, particularly in long-span roof or wall systems that require higher load-bearing capacity and stability. The 80-300 type fully automatic CZ Purlin Roll Forming Machine is a specialized machine with more advanced technology and a more complex forming process. It is designed specifically for the production of high-performance CZ-section composite purlins.  Using a highly automated cold roll-forming process (possibly combined with in-line joining technology), it continuously processes steel strip into various CZ profiles with a total height ranging from 80mm to 300mm. Its core value lies in its ability to efficiently and mass-produce high-strength, high-stability purlins required for long-span, heavy-load construction.  It is a vital piece of equipment in high-end steel structure manufacturing. However, its technical difficulties and costs are generally higher than those of standard C-section purlin forming machines.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Product Information

  • Similar to the C-type machine, this means the equipment features fully automated functions:

    Automatic Uncoil Feeding: The steel coil is automatically unwound, leveled, and fed into the forming line.

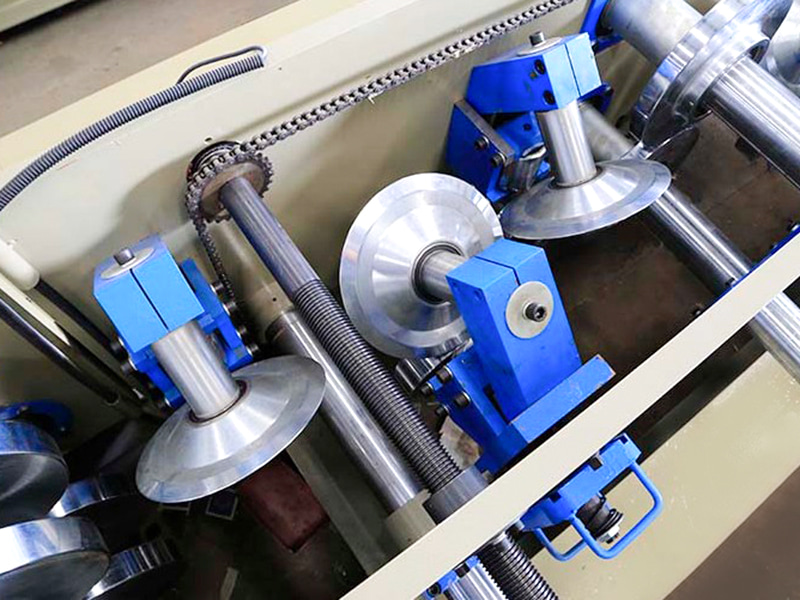

    Automatic Roll Forming: Program-controlled, multi-pass precision rolling.

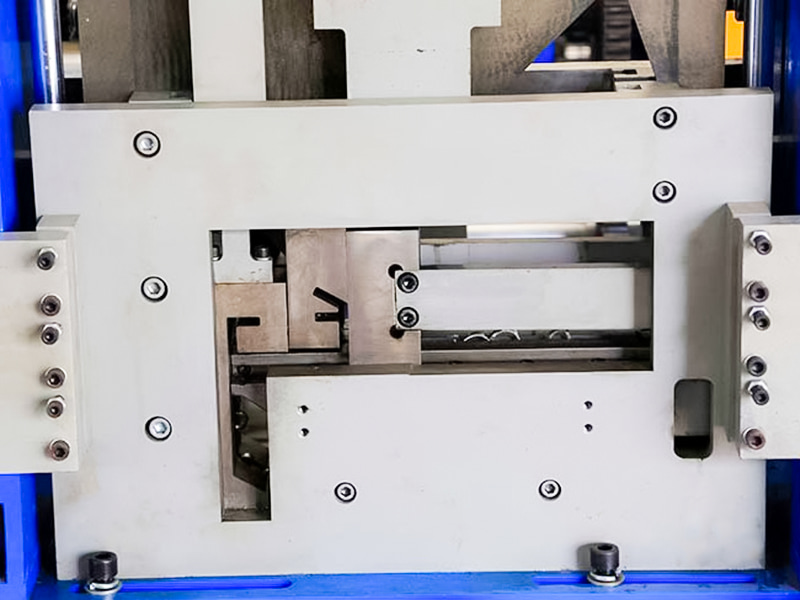

    Automatic Cutting to Length: High-speed flying saws or hydraulic shears perform precise cutting in continuous motion, ensuring uninterrupted production.

    Automatic Discharging/Stacking: Finished products are automatically conveyed, counted, and neatly stacked.

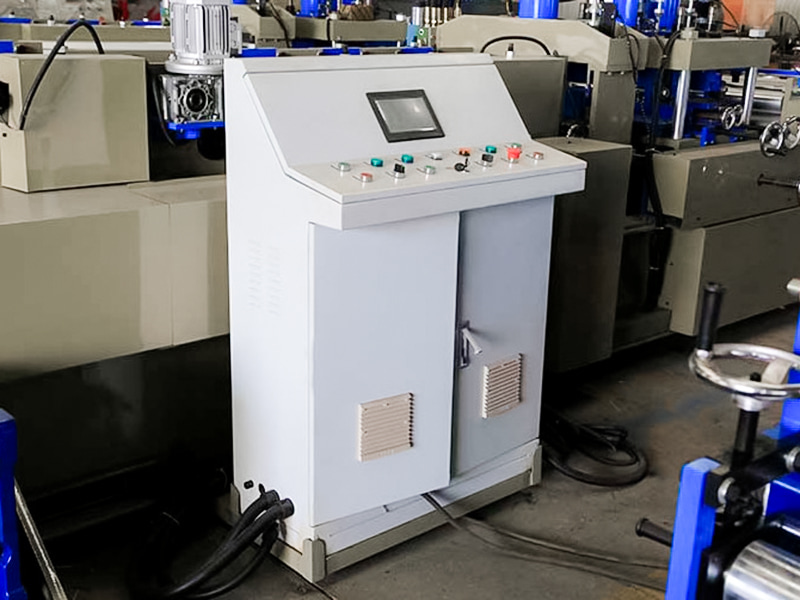

    PLC Intelligent Control: Parameters (specifications, length, quantity, hole positions, etc.) are set via the touchscreen, and the system automatically executes and monitors the entire process.

    Advantages:

    Excellent Structural Performance: The produced CZ purlins offer strength and stability far exceeding that of single C-type purlins.

    Long-Span Solution: A key component for cost-effective long-span construction.

    High Production Efficiency: Fully automated continuous production meets large-volume demands.

    High Precision and Consistency: PLC control ensures dimensional accuracy and consistent quality.

    High Material Utilization: Continuous production reduces waste. Flexibility (relative): A single machine can produce CZ purlins of varying specifications within its nominal range (80-300mm height) by replacing roller sleeves and making adjustments (note: replacing the mold is a significant task).

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.40 I-Beam Steel Overall Welding Structure
    Roller Material Cr12Mo1V1 Vacuum Hardening
    Main Shaft φ90，40Cr Hardening and Tempering
    Forming Groups 20
    Main Motor Power 25KW, Invt
    Main Drive Gear Box K107 (K107 Helical Gear Box)
    Drive Method 1.2 Inch Double Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 11KW

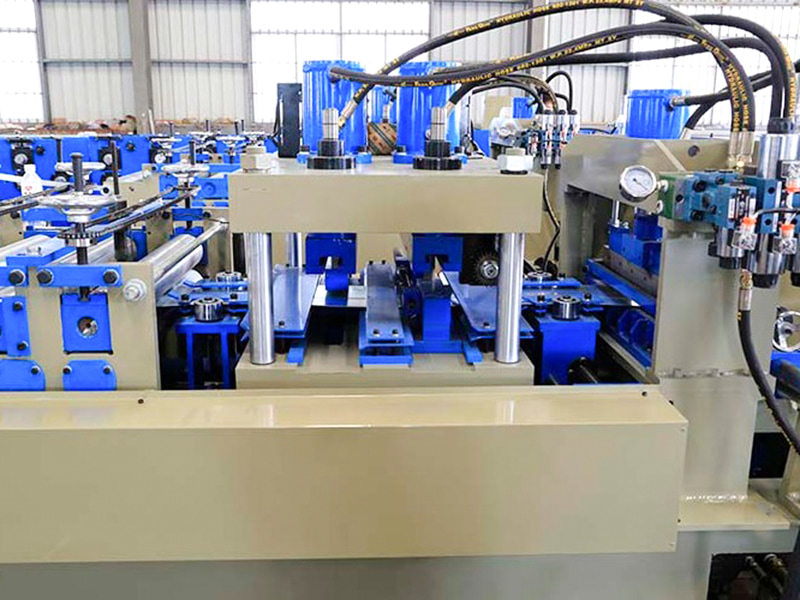

    Punching Mode Hydraulic Punching
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 25 Meters
    Equipment Weight Around 12-Ton
    Raw Material Thickness 3.0mm Q235 Galvanized Coil
    Raw Material Width 175mm~480mm
    Production Speed 25~30m/min
