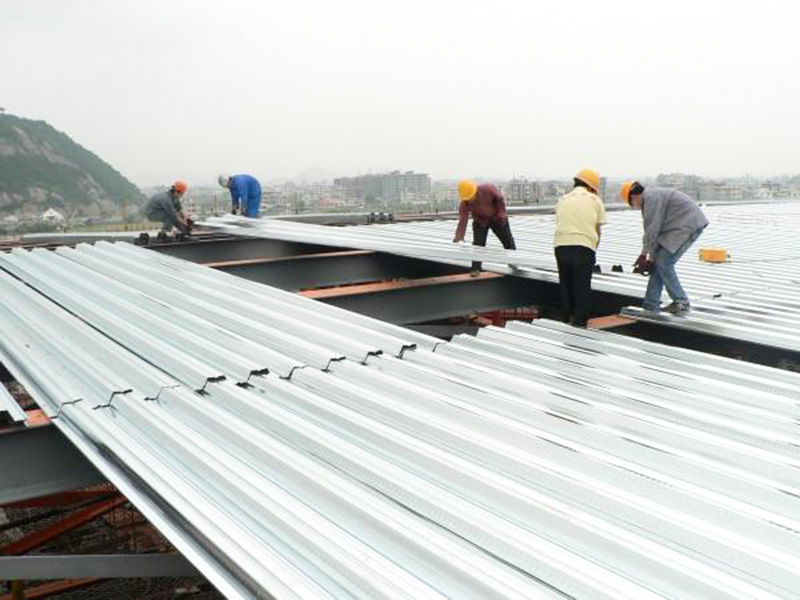

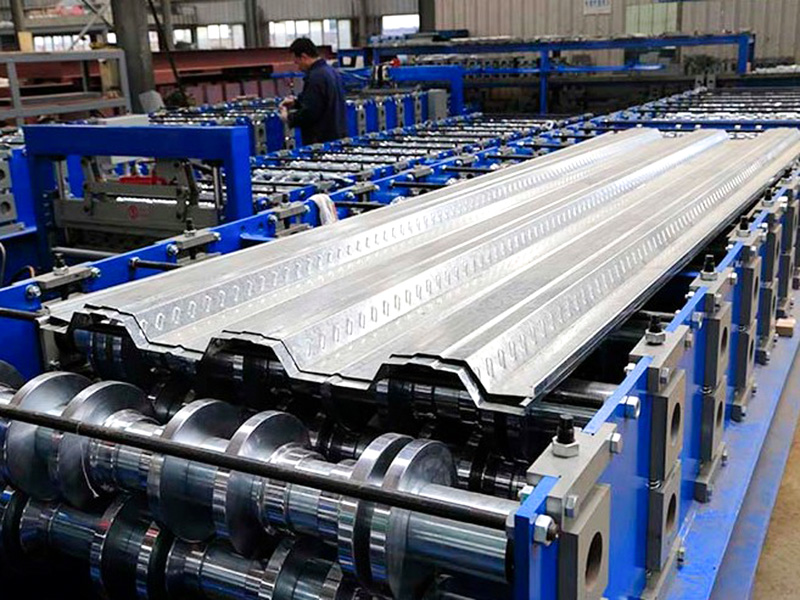

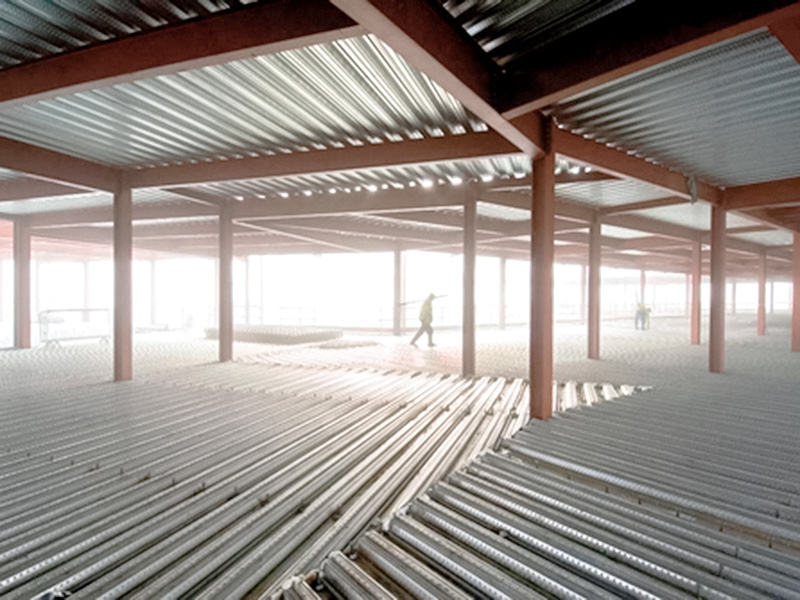

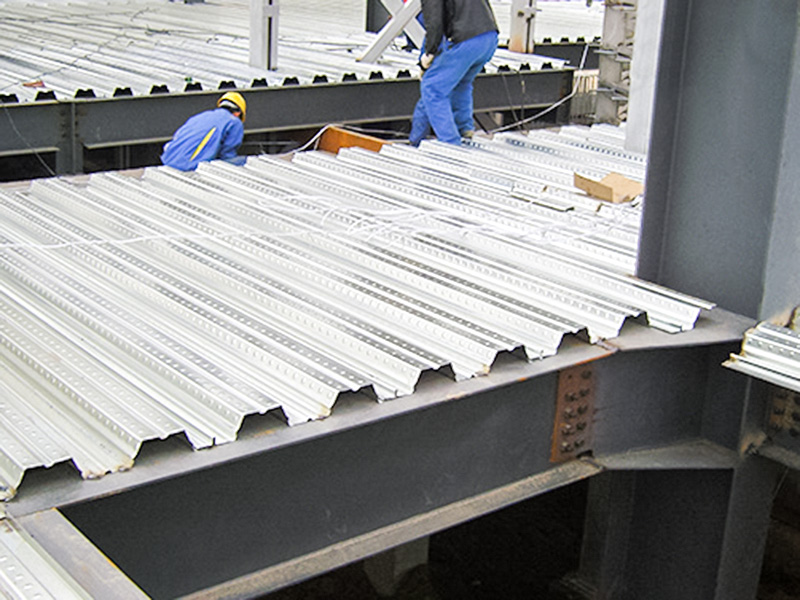

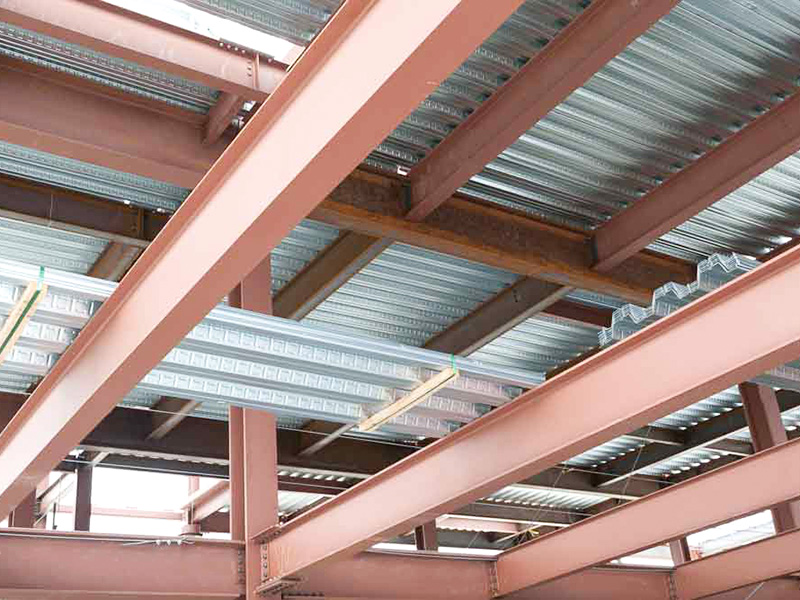

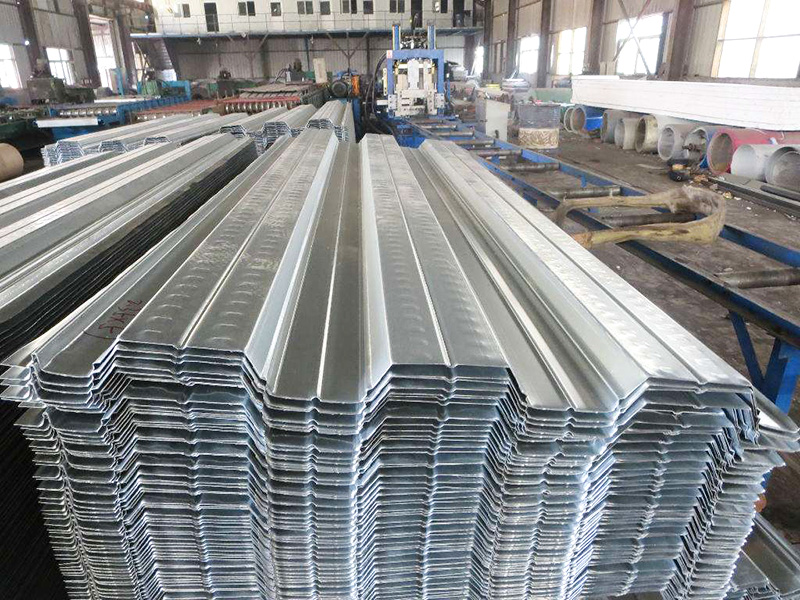

The YX50-1005 floor decking roll-forming machine is an automated roll-forming machine specifically designed for producing YX50-1005 closed-end floor decking (also known as steel decking or corrugated steel sheet). This machine uses a cold roll-forming process to form metal coils into decking with specialized cross-sectional shapes. These decks serve as permanent formwork and load-bearing reinforcement for concrete slabs and are widely used in steel structures.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Product Information

  • Core Values of the Equipment:

    Efficient Production: Continuous roll forming at speeds of 15-20 m/min meets the needs of large-scale projects.

    Precision Guarantee: Ensures rib height and plate width tolerances of ≤±0.5mm (affecting floor flatness).

    Customization Capabilities: In-line punching and corner cutting are possible (to accommodate pipeline crossings).

    Core Components Typically Include:

    Loader/Uncoiler: Loads and unwinds the metal coils.

    Guarantee/Leveling Device: Ensures the strip enters the forming area straight.

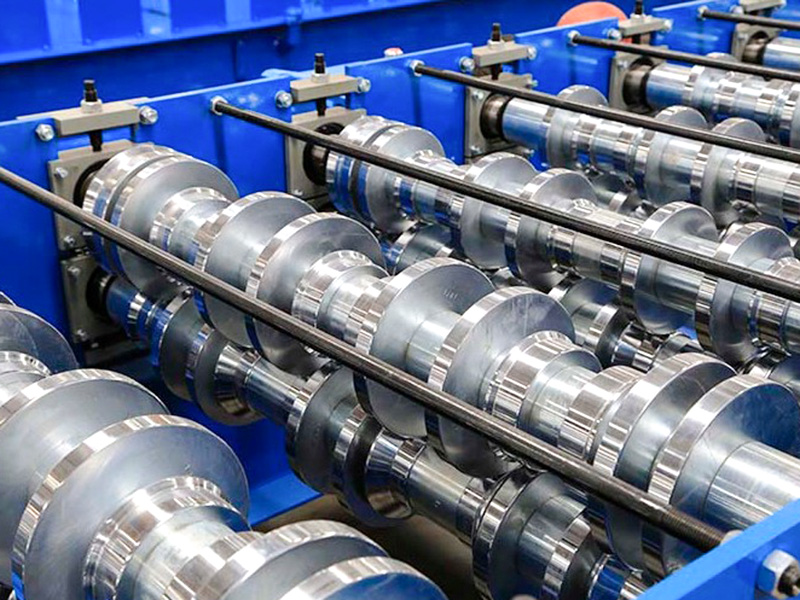

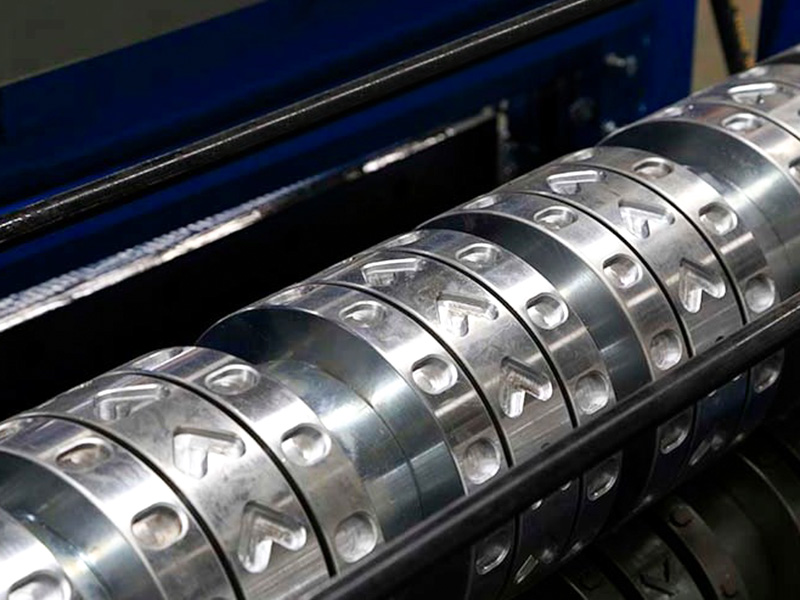

    Multiple forming stands: The core component, each consisting of one or more pairs of upper and lower forming rollers, are responsible for gradually bending the metal.

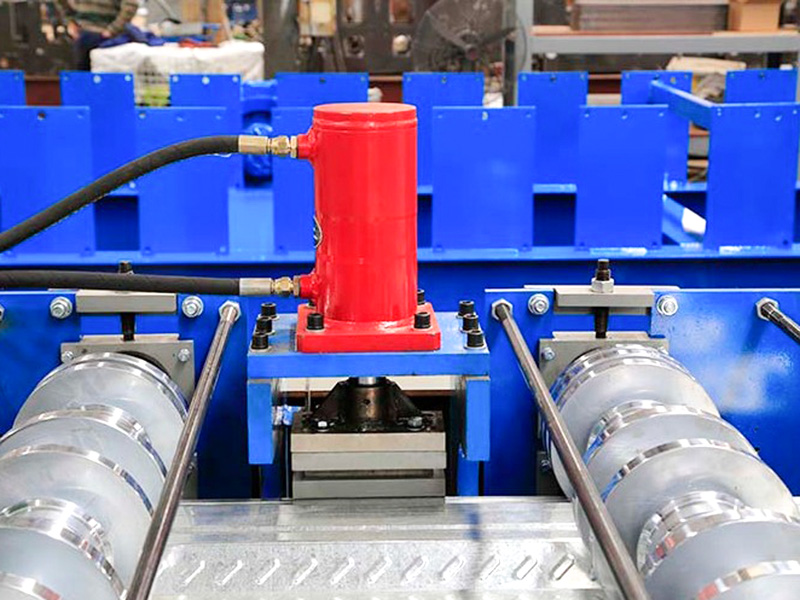

    Cutting device: Typically, a hydraulic flying shear or stop shear, precisely cuts the sheet metal to the desired length as it continues to move.

    Discharging/stacking system: Collects and stacks the formed and cut sheets.

    Control system (PLC): Controls the entire production line's operating speed, cutting length, and counting.

    Key Features and Uses of This Equipment:

    Highly specialized: The roller molds are designed to precisely meet the precise cross-sectional shape and dimensional requirements of the YX50-1005 floor deck, ensuring accurate accuracy of key parameters such as wave height, wave spacing, and effective width in the finished product.

    Efficient production: Continuous operation is possible, with production speeds typically reaching 15-20 meters per minute or higher, making it suitable for large-scale projects.

    Material Compatibility: It can process coils of various materials (steel, aluminum) and coatings (galvanized, color-coated PVDF/Polyester/SMP, etc.), with thicknesses typically ranging from 0.8mm to 1.5mm (depending on the machine's capabilities).

    Precise Cutting: Equipped with a high-performance cutting system, each sheet is precisely cut to length.

    Automated Control: The PLC system enables parameter setting, operation monitoring, and fault diagnosis, ensuring easy operation.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.45 I-Beam Steel Overall Welding Structure
    Roller Material High Quality 45# Steel Fine-Machining, Quenched, Coated With Hard Chrome
    Main Shaft φ80，45# Steel Fine-Machining, Quenched
    Forming Groups 20
    Main Motor Power 15KW
    Drive Method Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 5.5KW
    Cut Blade Cr12MoV Quenched, HRC58-62
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 20 Meters
    Equipment Weight Around 9-Ton
    Raw Material Thickness 0.8-1.5mm Q235 Galvanized Coil
    Production Speed 15~20m/min
