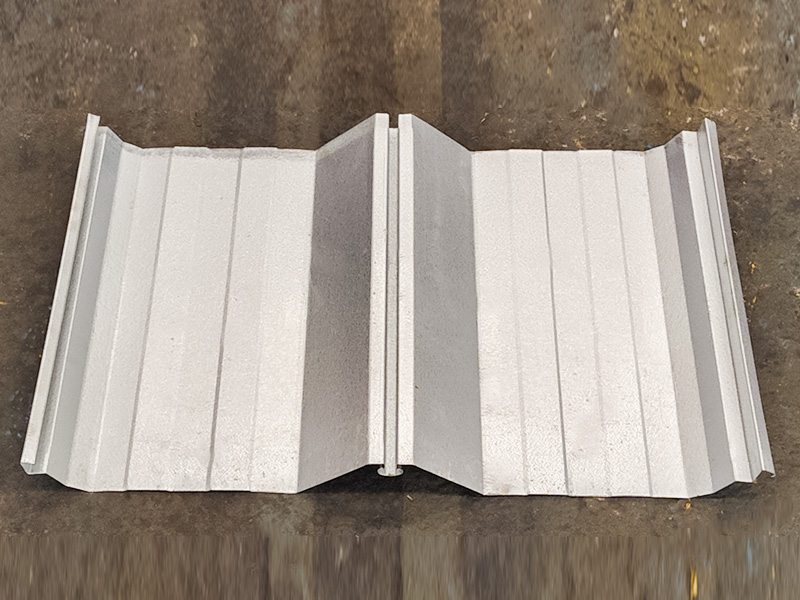

The PV tile roll forming machine is a highly automated, continuous production facility designed to directly process aluminum-magnesium-manganese alloy coils into roofing tiles with specific shapes and sizes.  It integrates a comprehensive automated production line, integrating coil uncoiling and leveling, continuous cold roll forming, precise length cutting, and finished product stacking.  Core Process: Roll Forming  Principle: This is the core technology of the machine. It utilizes a series of precision-engineered forming rollers to continuously bend the aluminum-magnesium-manganese alloy coils at room temperature (or near room temperature) through multiple passes, gradually shaping them into the desired final tile shape (such as corrugated, trapezoidal, or flat edge).  Features: Compared to hot rolling or stamping, roll forming offers high efficiency, low cost, high material utilization, and excellent surface quality, making it particularly suitable for the continuous production of long products.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Product Information

  • Key Advantages:

    Efficient Production: Continuous roll forming offers high speed and output.

    Stable Quality: Automated control ensures consistent product shape and dimensions.

    Protecting PV Modules: The cold-bending process eliminates the potential impact of high temperatures on PV module performance; the aluminum-magnesium-manganese alloy casing provides strong physical protection for the modules.

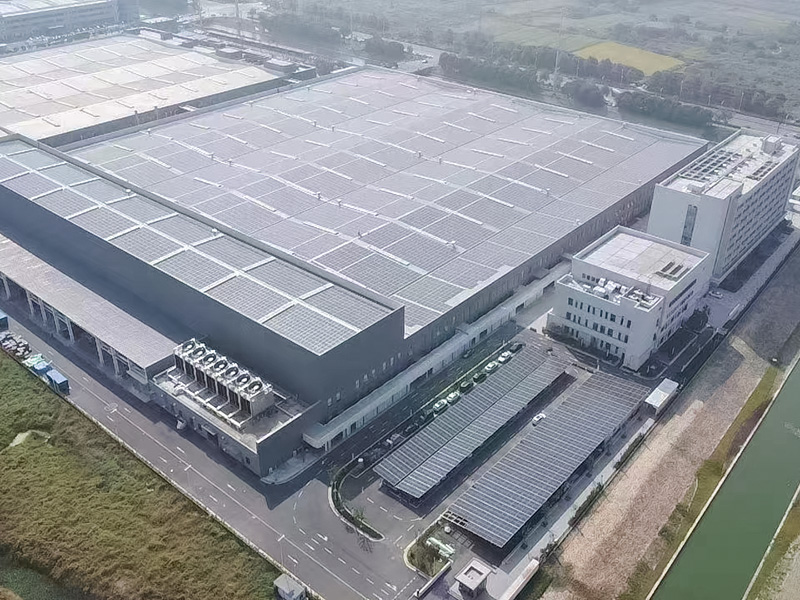

    Aesthetics and Waterproofing: The formed tiles provide excellent roof coverage and structural waterproofing.

    Lightweight: The aluminum alloy material makes the entire PV tile system lightweight and reduces roof structural requirements.

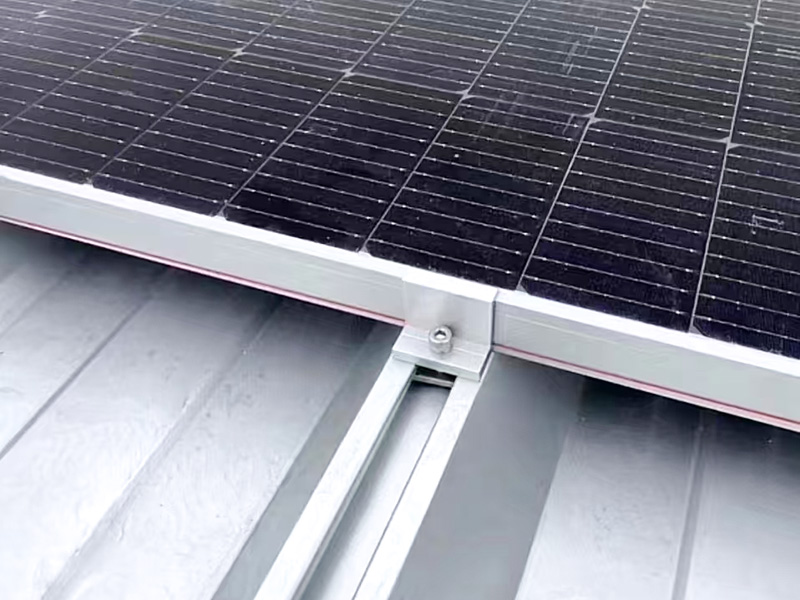

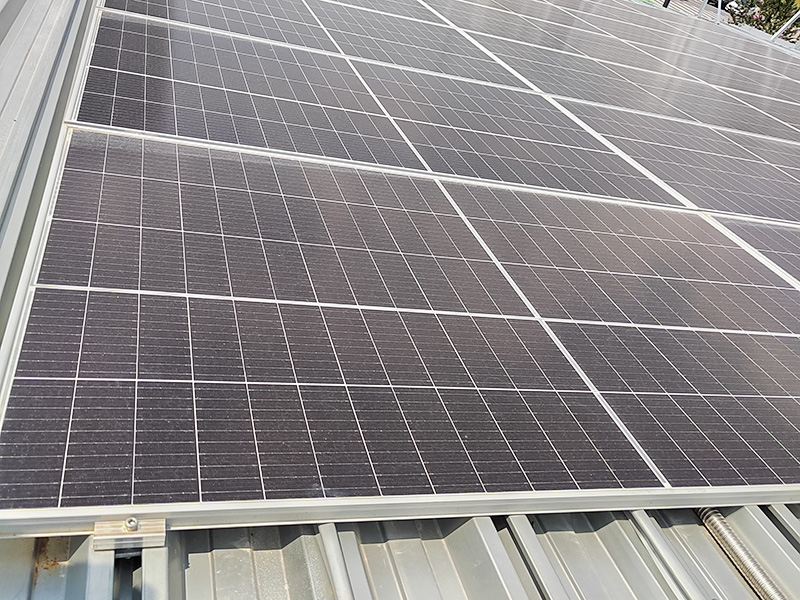

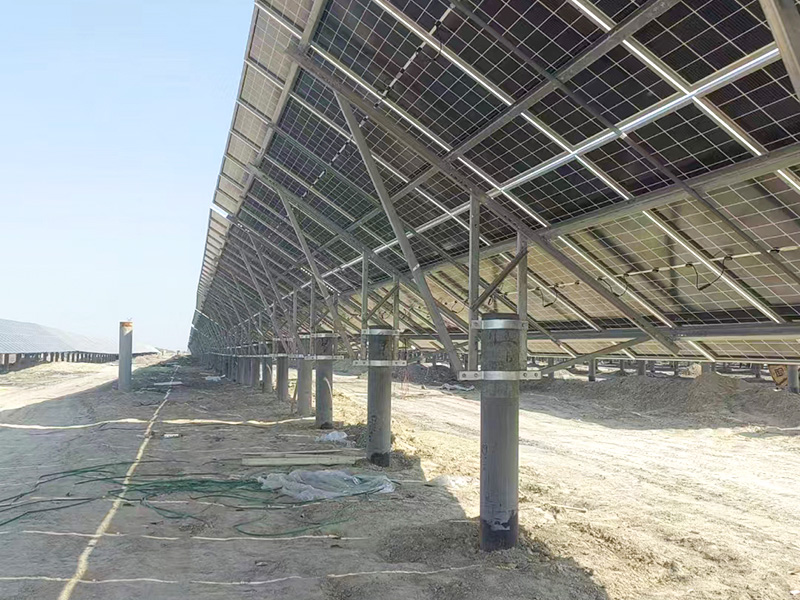

    Easy Installation: The finished tiles can be installed on-site just like traditional metal tiles, significantly simplifying the traditional complex process of "installing brackets on the roof and then installing PV panels," saving labor and time.

    Production Process:

    Uncoiling and Leveling: The aluminum alloy roll is unwound and leveled to eliminate curling stress and ensure a flat material entering the forming section.

    Material Guiding: The material is smoothly and accurately fed into the forming unit.

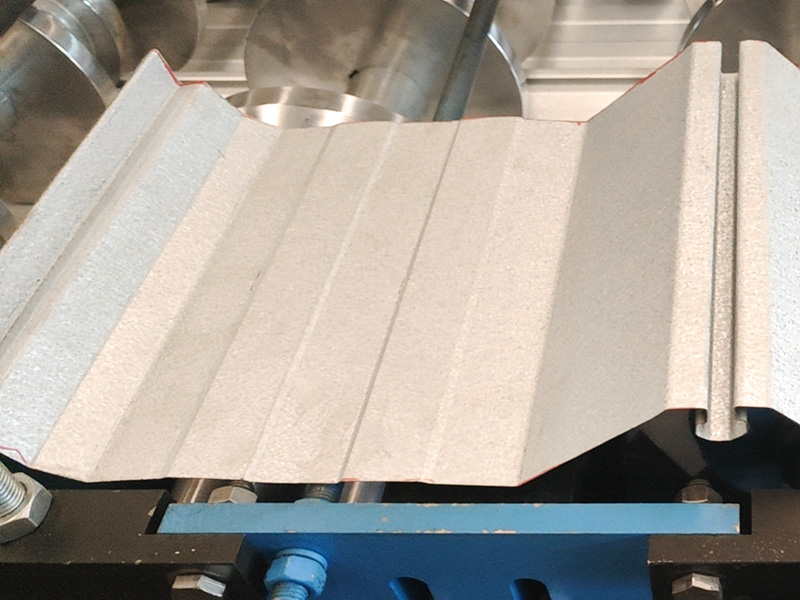

    Continuous Cold Roll Forming: The material passes through multiple sets of carefully arranged forming rollers. Each set of rollers applies a specific bending force to the material, gradually shaping it to the final tile profile. This is the core component of the equipment.

    Cutting/Sizing: Continuously formed tile material is precisely cut to the desired length. Hydraulic shears or servo shears are commonly used.

    Stacking/Collecting: Cut finished PV tiles are automatically stacked neatly for packaging and shipping.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.36 I-Beam Steel Overall Welding Structure
    Roller Material High Quality 45# Steel Fine-Machining, Quenched
    Main Shaft φ75，45# Steel Fine-Machining, Quenched
    Forming Groups 20
    Main Motor Power 11KW
    Drive Method Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 4 KW
    Cut Blade Cr12MoV Quenched, HRC58-62
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2 KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 20 Meters
    Equipment Weight Around 11-Ton
    Raw Material Thickness 0.4-0.8mm Q235 Galvanized Coil
    Production Speed 15m-18/min
