A roof ridge cap roll forming machine, which is mostly used to manufacture roof ridges or ridge flashing installed along the ridge lines of inclined roofs or valleys. The YX115-300 ridge cap roll forming machine is a cold-bending roll forming machine specifically designed for producing metal ridge cover panels. Its core function is to continuously process metal coils into high-strength, sealed cover tiles that conform to the curvature of the roof ridge line. This equipment addresses the core pain points of traditional roofing projects: weak ridge waterproofing and low manual forming efficiency. According to the different technical requirements of the final product, there are different roof waterproofing membrane forming machines. However, in the market, people use three-roof ridge forming machines most of the time. Roof ridge caps with steps, roof ridge caps without steps and V-shaped roof rain panels without steps. It must be pointed out that sometimes the ridge roof hats that do not use STEPS can be used as both roof ridge hats and the flooding part of the roof valley. In addition, there is a similar machine, namely the glazed tile roll forming machine. Compared with the roof ridge cap roll forming machine, another situation is the roof valley bottom flashing roll forming machine. People used to install valley flashes in the valleys of two intersecting roof slabs, and this position determines the shape of the valley flashes to be V-shaped. However, sometimes people can install a V-shaped flood wall in the valley as a roof valley flood wall, or install a flood wall along the roof ridge line as a roof ridge cap.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Product Information

  • Core Components Typically Include:

    Loader/Uncoiler: Loads and uncoils the metal coils.

    Guiding/Straightening Device: Ensures the strip enters the forming area straight.

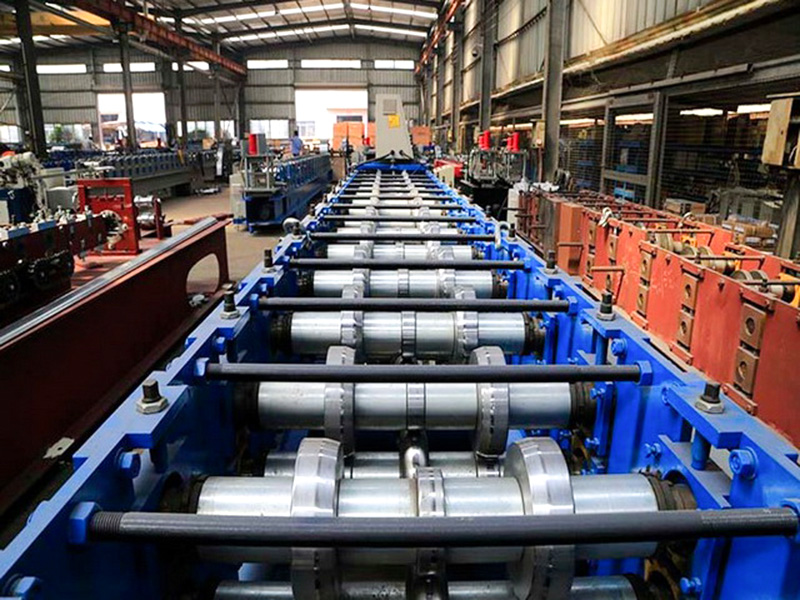

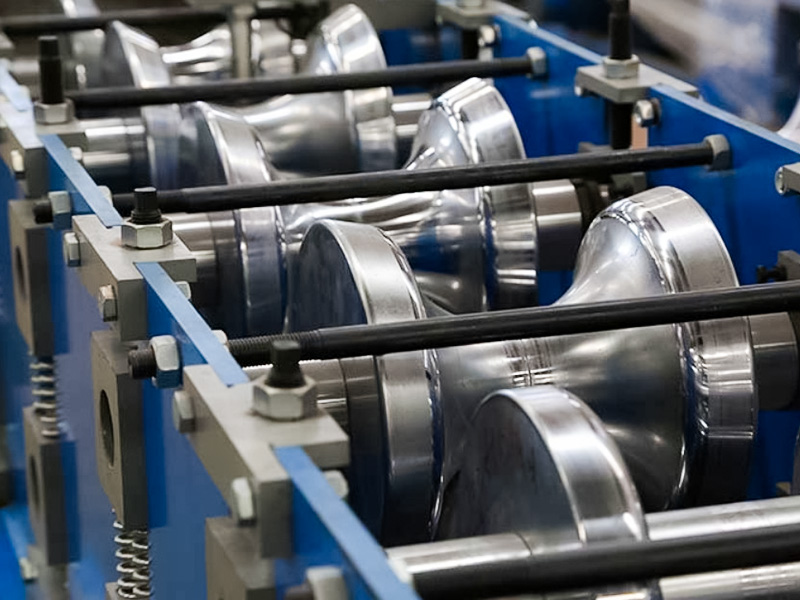

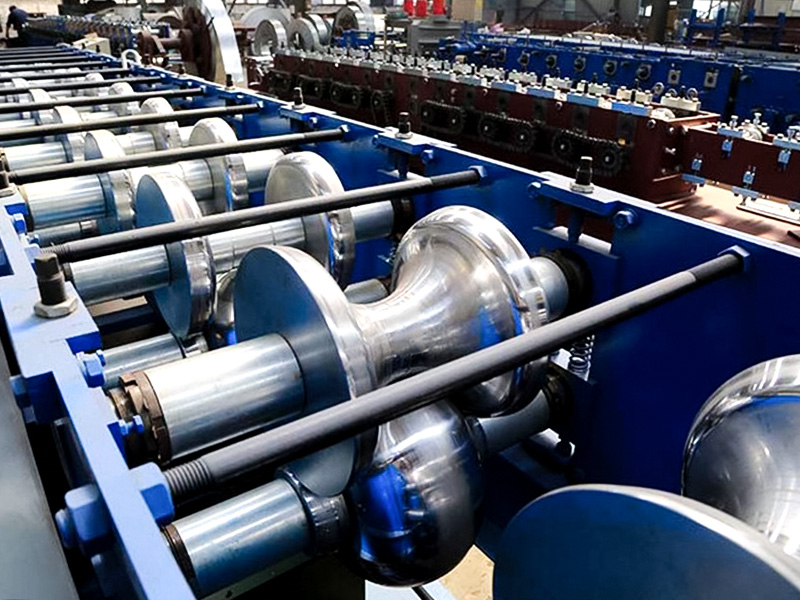

    Multi-Standard Forming Frame: The core component, each frame containing one or more pairs of upper and lower forming rollers, is responsible for gradually bending the metal.

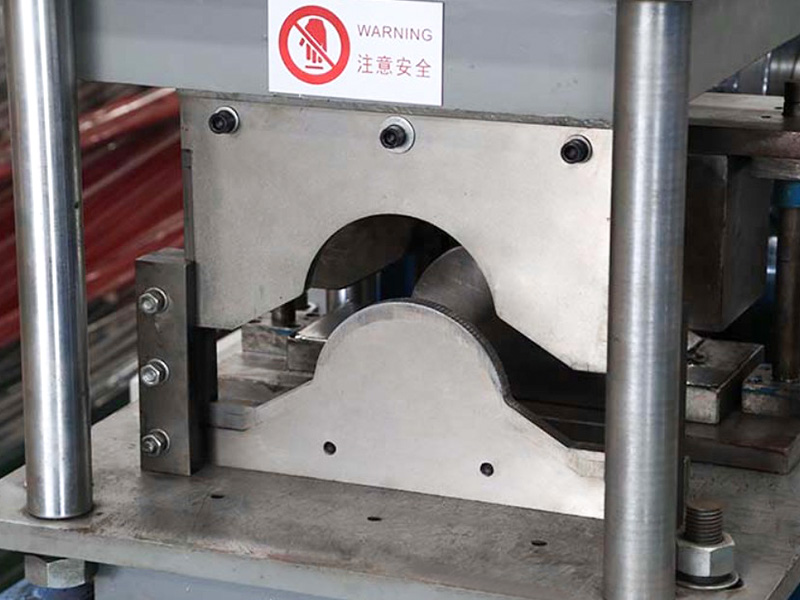

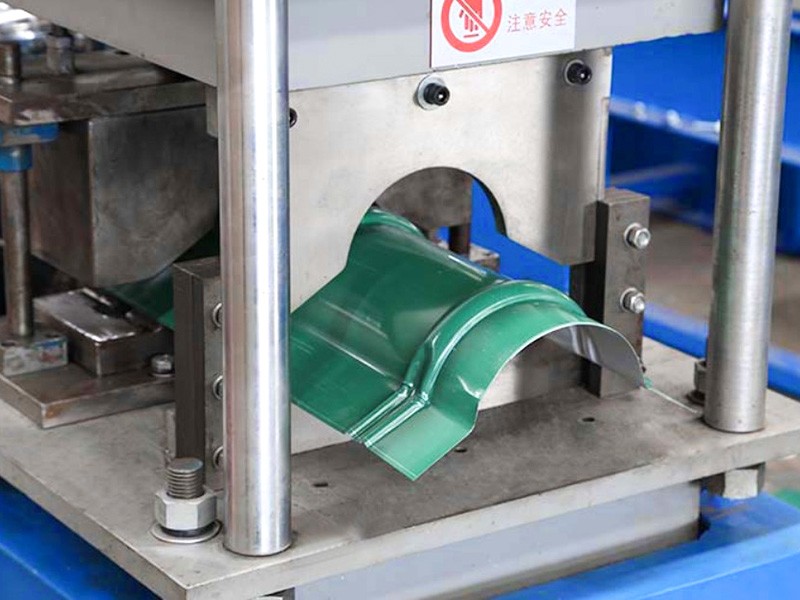

    Cutting Device: Typically, a hydraulic flying shear or stop shear precisely cuts the sheet to the desired length as it continues to move.

    Discharging/Stacking System: Collects and stacks the formed and cut sheets.

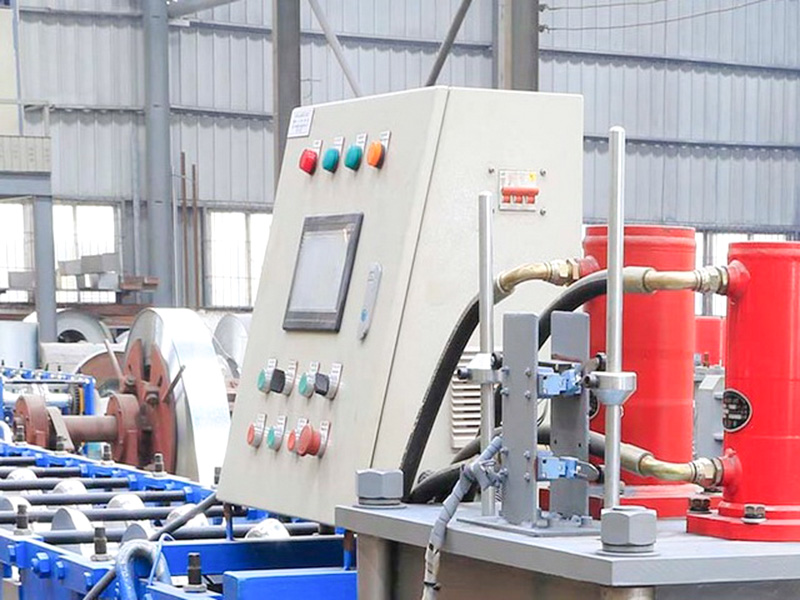

    Control System (PLC): Controls the entire production line's operating speed, cutting length, and counting.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.45 I-Beam Steel Overall Welding Structure
    Roller Material High Quality 45# Steel Fine-Machining, Quenched, Coated With Hard Chrome
    Main Shaft φ75，45# Steel Fine-Machining, Quenched
    Forming Groups 14
    Main Motor Power 5.5KW
    Drive Method Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 4.0KW
    Cut Blade Cr12MoV Quenched, HRC58-62
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 18 Meters
    Equipment Weight Around 6-Ton
    Raw Material Thickness 0.4-0.6mm Q235 Galvanized Coil
    Production Speed 12~15m/min
