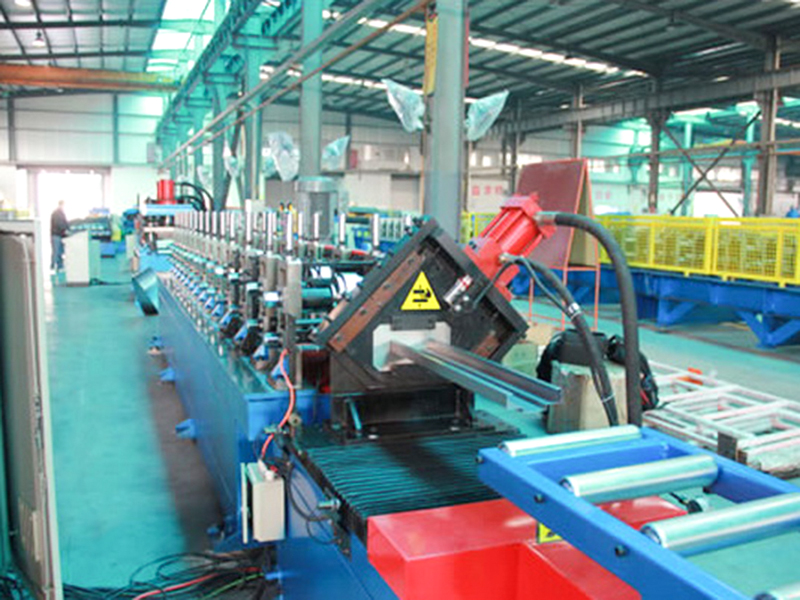

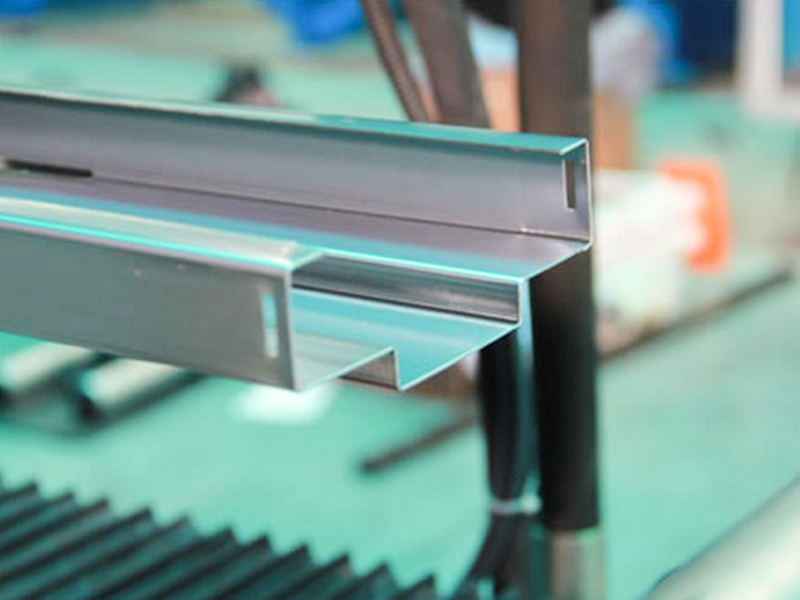

The door frame roll forming machine is a cold-bending and rolling-forming machine specifically designed for producing door and window frames (such as the frames of steel security doors, fire doors, garage doors, and industrial doors). It uses multiple precision rollers to continuously cold-bend metal strip (commonly galvanized steel, color-coated steel, stainless steel, or aluminum alloy) to efficiently and accurately produce the complex closed or semi-closed cross-section profiles required for door frames.
Get A Quote
PREV：Highway Guardrail Roll Forming MachinesNEXT：Steel Stud and Track Roll Forming Machines
  • Product Information

  • Core Components:

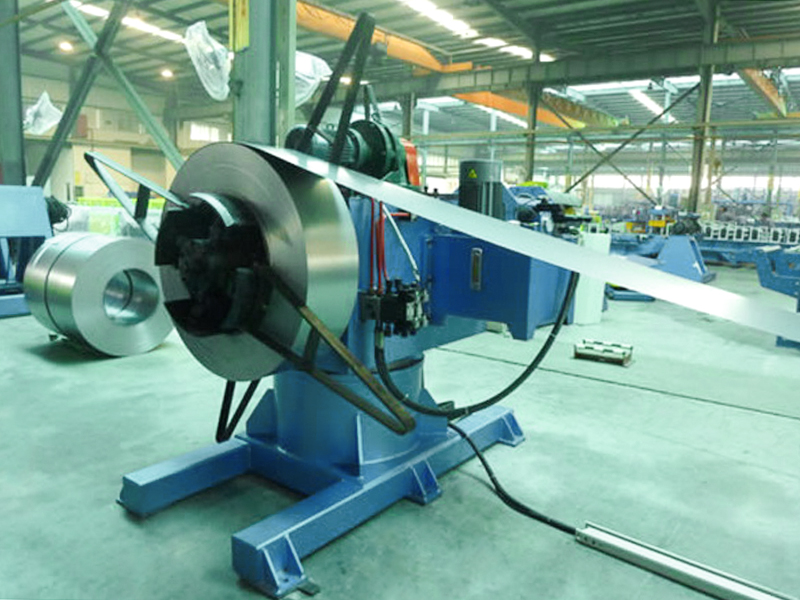

    Uncoiler and Leveler: Uncoils the metal coil and eliminates curling stress, ensuring a smooth transition into the forming area.

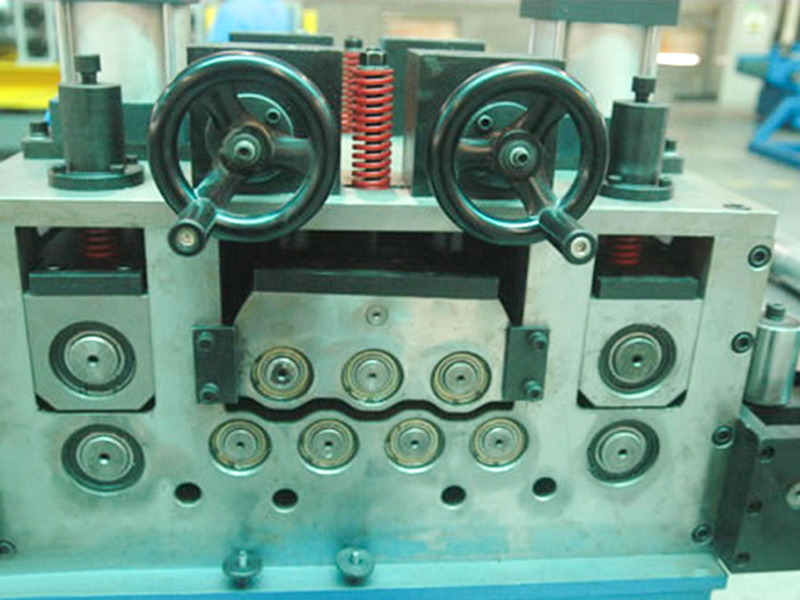

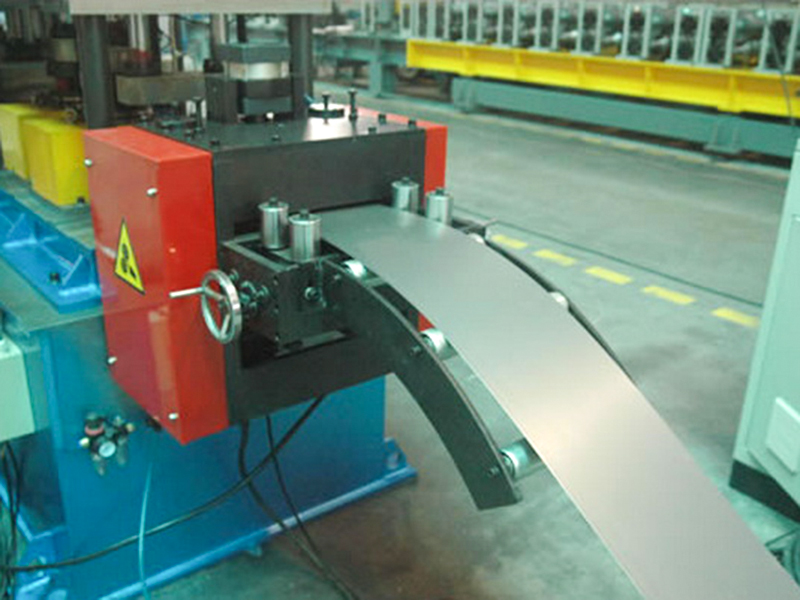

    Guide Feeder: Precisely guides the strip into the first set of rolls to prevent deviation.

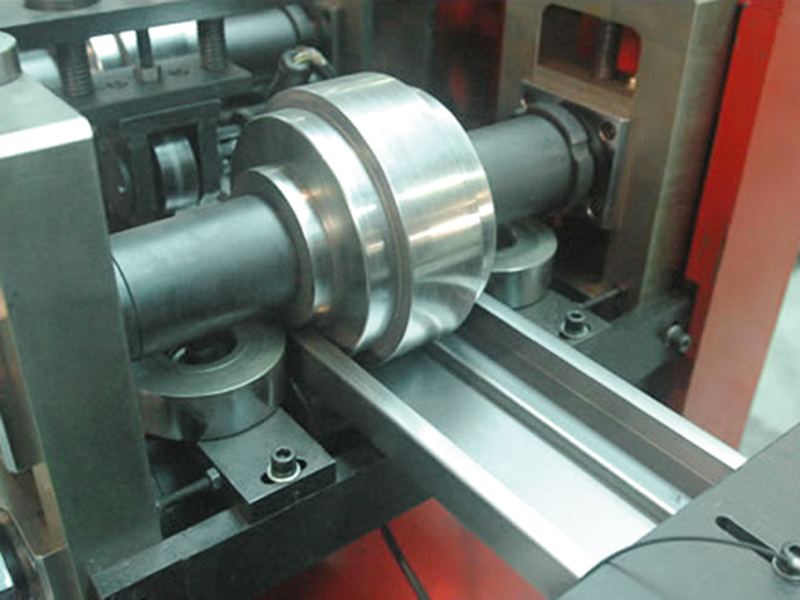

    Main Forming Unit (Core Component): Multiple sets of rolls are arranged in a sequential process sequence to gradually roll the flat sheet into the door frame cross-section.

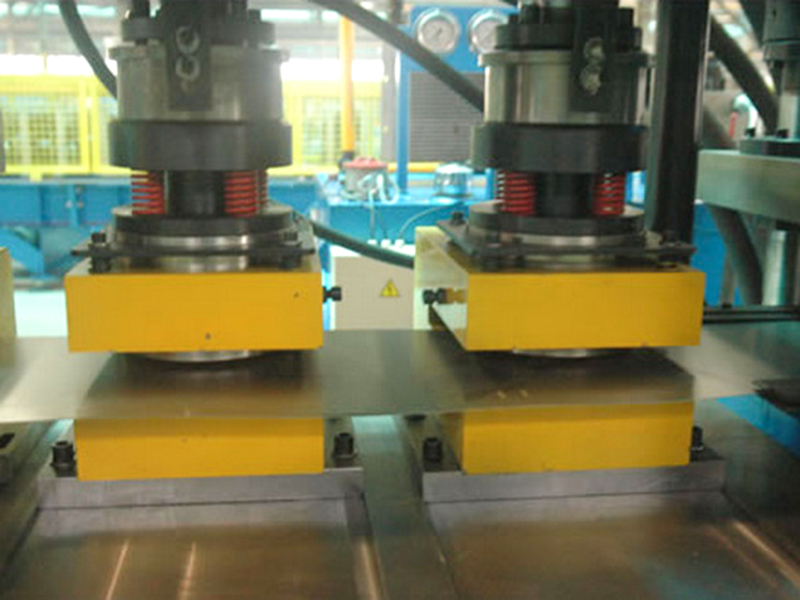

    Inline Punching Unit (Optional): Punches keyholes, hinge holes, or drainage holes simultaneously during the forming process, reducing subsequent steps.

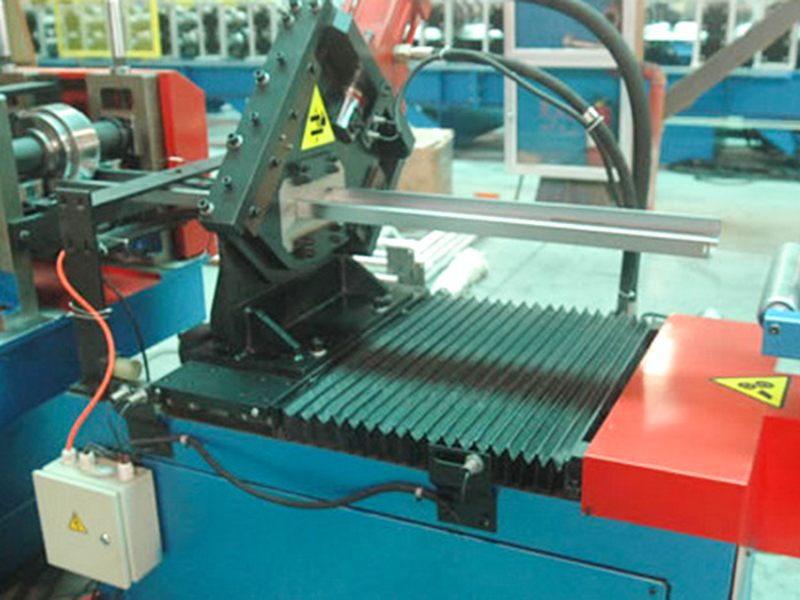

    Servo Cutting System: High-precision tracking cutting (flying saw/hydraulic shear), resulting in smooth, burr-free cuts with a length error of ≤±0.5mm.

    Automatic Stacker: Stacks or conveys finished door frames, supports counting and packaging.

    PLC Control System with Touchscreen Operation: Set parameters (length/speed/quantity), monitor operating status in real time, and perform fault diagnosis.

    Industry Application Value:

    Replacing Traditional Processes: Replacing manual bending and welding, reducing steps and costs by over 30%.

    Improving Consistency: Automated production eliminates human error and ensures interchangeability of large-volume door frames.

    Strengthening Structural Performance: Cold work hardening increases profile strength, extending the service life of doors and windows.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.40 I-Beam Steel Overall Welding Structure
    Roller Material Cr12MoV Vacuum Hardening
    Main Shaft φ75，45# Steel Hardening and Tempering
    Forming Groups 15
    Main Motor Power 7.5KW
    Drive Method 1.2 Inch Double Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 11KW
    Punching Mode Hydraulic Punching
    Uncoiler Load 5-Ton, With Loading Platform Hydraulic Station Motor Power Is 2.2KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 18 Meters
    Equipment Weight Around 5-Ton
    Raw Material Thickness 0.6-1.2mm Q235 Galvanized Coil
    Production Speed Over 25m/min
