Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine
Simple Coil Flattening and Cutting Machine

Simple Coil Flattening and Cutting Machine

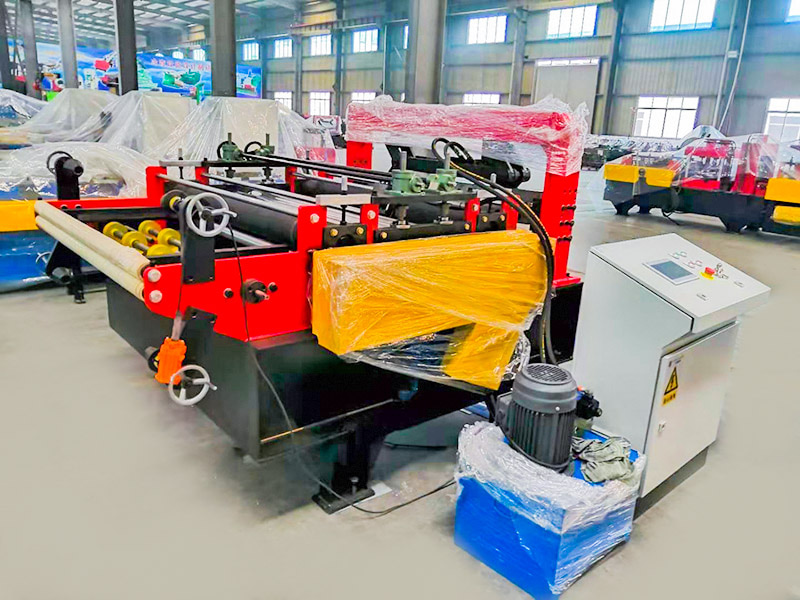

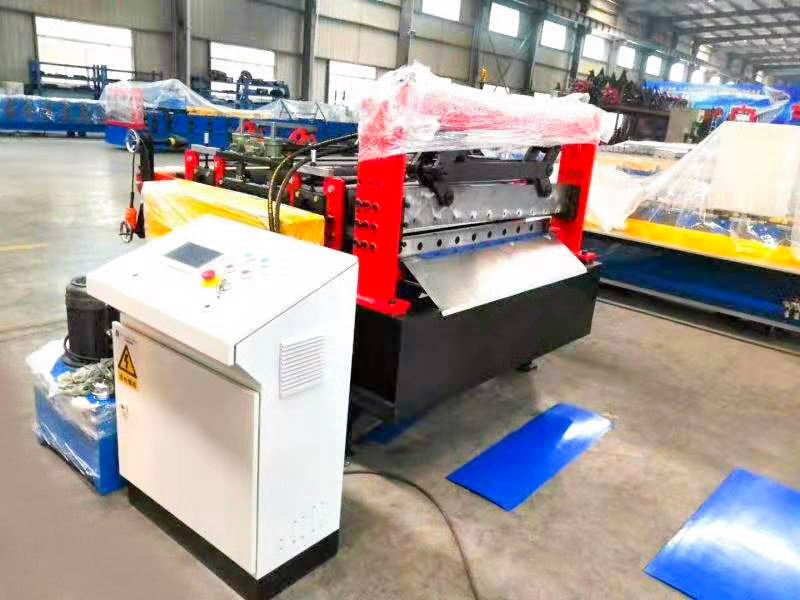

The Simple Coil Flattening and Cutting Machine is an economical two-in-one machine for pre-processing metal sheets, offering a simple structure, basic functions, and low cost. It integrates coil flattening and cut-to-length cutting into a single, streamlined production line, enabling continuous processing from coil to flat sheet. Designed for small-scale, low-budget applications, it addresses the fundamental requirements of "uncoiling, leveling, and cutting to length."
Get A Quote
PREV：No previous articleNEXT：Steel Coil Cut-To-Length Line
  • Product Information

  • Core Functions：

    Uncoiling (Unwinding): Supports and slowly unwinds the coil, relieving coil stress.

    Leveling (Straigthening): Mechanical rollers eliminate deformations such as wavy edges, warping, and camber, restoring flatness.

    Shearing (Cutting to Length): Cuts the continuously fed (flattened) metal strip into single sheets at a preset length.

    Equipment Features:

    Simple Structure: No complex automation systems, compact mechanical design, and small footprint (typically 5-10 meters in length).

    Manual operation is predominant: Manual coil loading, parameter adjustment (such as leveling roller pressure), and sheet collection rely on operator experience.

    Functionality is streamlined: Focuses solely on unwinding and leveling, lacking advanced features like automatic web correction, tension control, and precision slitting.

    Low Cost: The price is approximately 1/5 to 1/3 of a fully automatic leveling line (typically tens of thousands of RMB).

    Low Power Consumption: The motor power is relatively low (typically 11kW to 30kW), making it suitable for small workshops.

    Typical Structure:

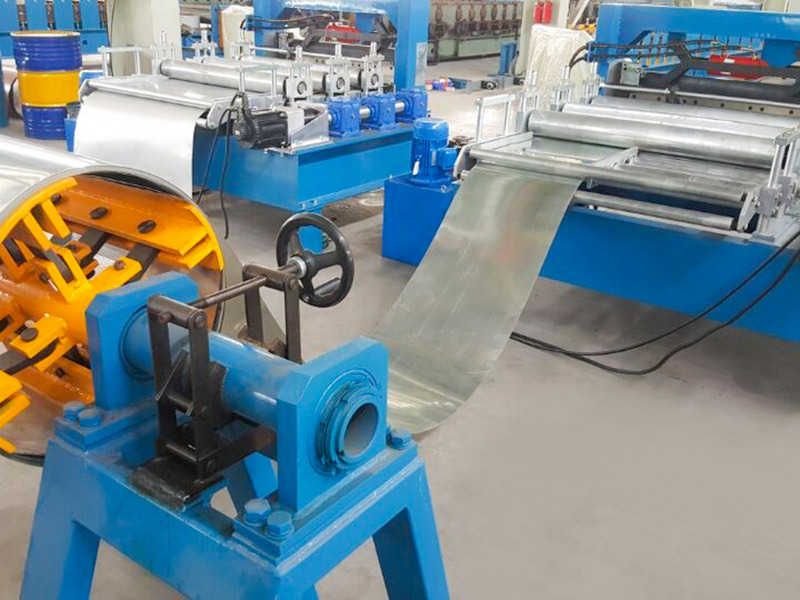

    Unwind Stand: A simple cone-shaped or cantilevered structure with a manually expanding and contracting reel to secure the coil.

    Feeder Platform: Manually guides the strip head into the leveling machine.

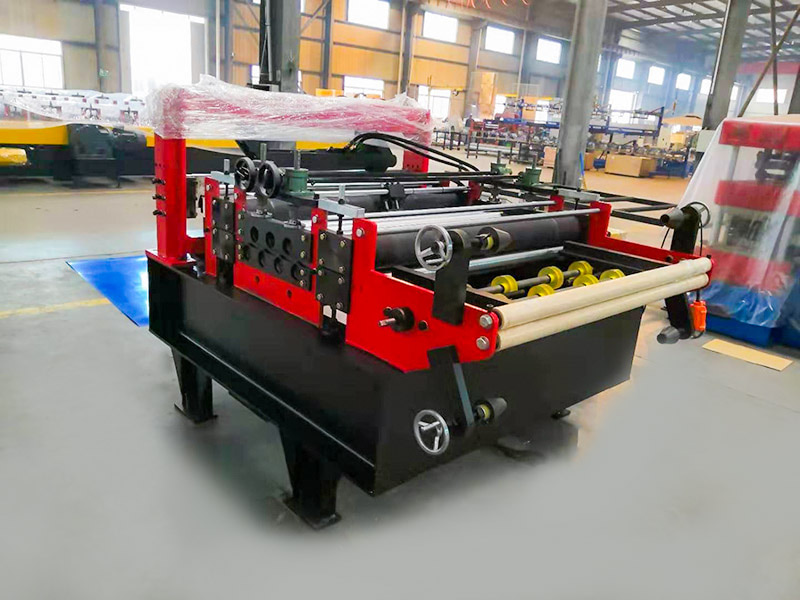

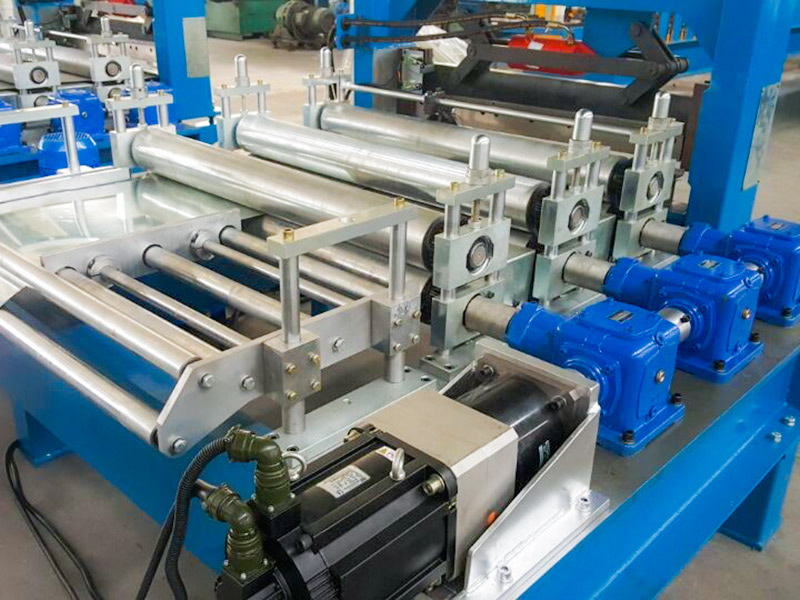

    Leveling Unit: The core unit, containing 5 to 9 leveling rollers (fewer than on advanced models), corrects deformation through roller bending.

    Shearing Device:

    Hydraulic Shears: Low cost and easy maintenance, suitable for thicknesses ≤3mm (the mainstream choice).

    Pneumatic Shears: Even more affordable, suitable only for sheet metal ≤1.5mm (prone to deformation).

    Shearing Rack: Receives the leveled sheets for manual handling and stacking.

    Power  Requirement Voltage 380V/50Hz/3Ph (can custom)
    Main Motor Power 7.5KW
    Cutter Power 5.5KW
    Production Speed 10-15m/min
    Thickness Of Structure 18mm
    Shaft Diameter 80mm
    Drive Gear
    H Steel 400mm
    Screen HMI
    Type of Cutting Length-set and post cutting
    Control System PLC Siemens
    Install Dimension(Depend On The Final Design) 3.6m×1.5m×1.2m
    Total Weight (Approx) 3.0T
