Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines
Steel Coil Leveling Machines

Steel Coil Leveling Machines

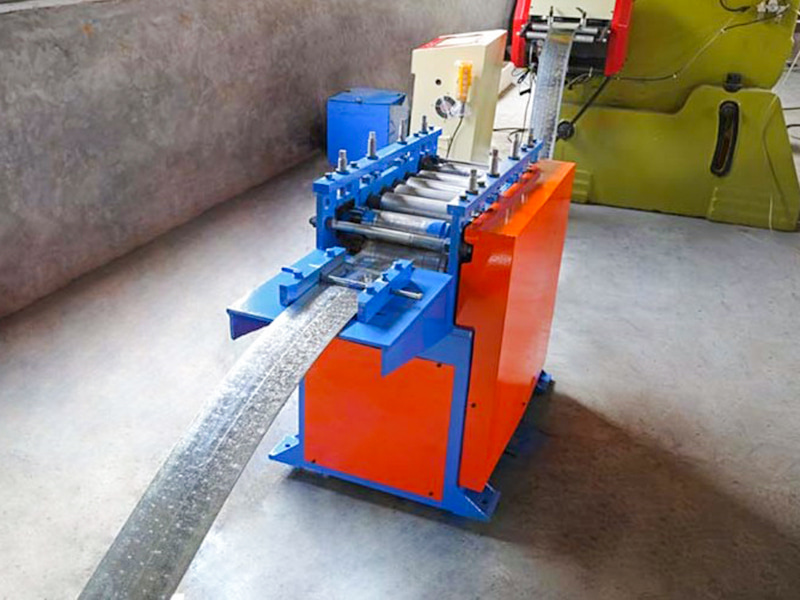

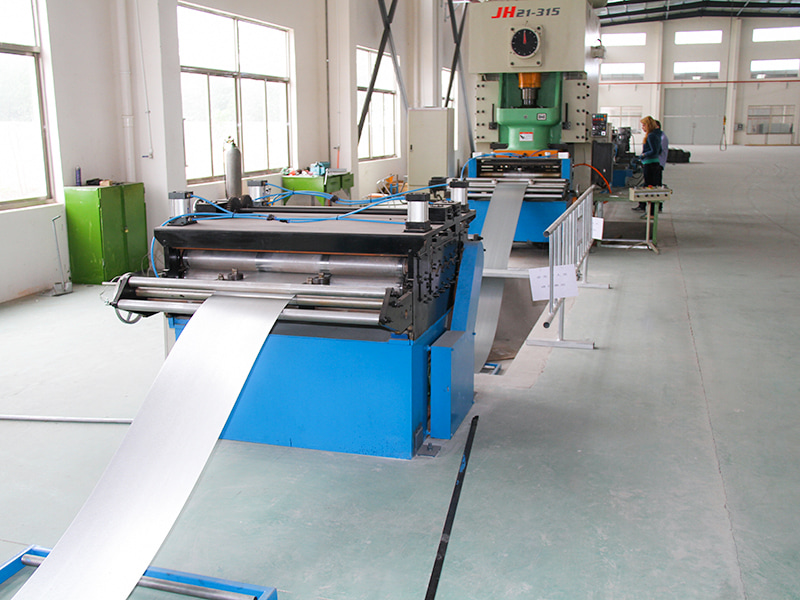

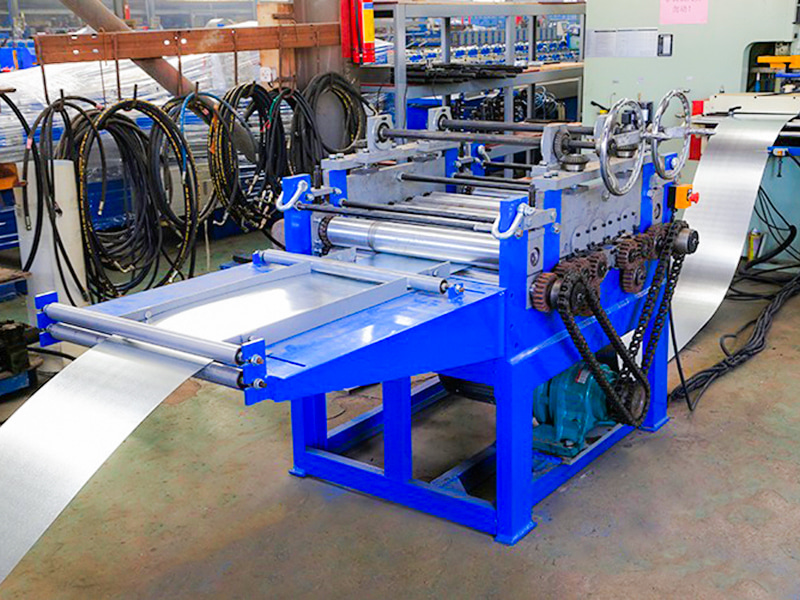

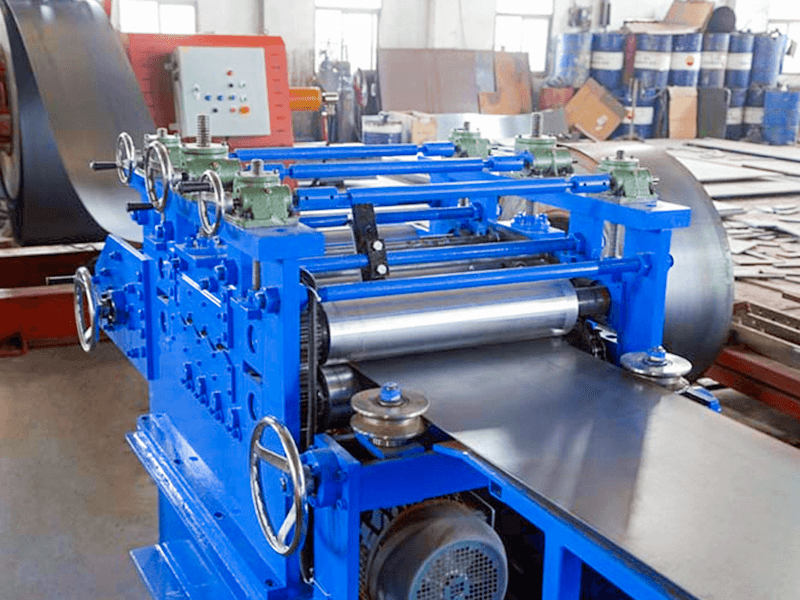

The Steel Coil Leveling Machines (also known as a leveler or straightener) in a cold roll forming production line is a key piece of equipment located after the uncoiler and before the forming machine.  It is a crucial pre-processing device for ensuring final product quality. Its core task is to pass a metal strip (sheet) that still has residual stress, bends, wavy edges, and camber defects after uncoiling through a precisely controlled multi-stage roll gap, subjecting the strip to a series of decreasing reverse bending deformations (flattening and straightening).  This effectively eliminates the original bends, wavy edges, and internal stresses in the coil, resulting in a flat, straight, and stress-free state. This provides qualified raw material for subsequent precision forming, cut-to-length cutting, or punching.
Get A Quote
PREV：Steel Coil Cut-To-Length LineNEXT：Steel Coil Hydraulic Uncoilers
  • Product Information

  • Basic Structure:

    Frame: A sturdy frame structure.

    Upper/Lower Straightening Roller Set: A core component. Typically, it consists of multiple cylindrical rollers arranged in a staggered pattern (commonly seen in odd numbers, such as 9, 11, 13, 15, 17, or 21).

    Upper Rollers: Typically mounted on a fully adjustable crossbeam, some or all of which can be independently adjusted (using a handwheel or motor).

    Lower Rollers: Typically fixed, or with only a few adjustable rollers. Drive rollers (driven by a motor through a reducer or gearbox) are typically located in the lower row.

    Gap Adjustment: Manually, electrically, or hydraulically driven, this mechanism precisely adjusts the downward pressure of the upper rollers relative to the lower rollers (i.e., straightening pressure/straightening pressure). High-precision machines allow for independent adjustment of each upper roller.

    Drive System: A motor, reducer, coupling, and gear distribution box rotate some or all of the lower rollers, pulling the strip forward. This system is typically synchronized with the production line speed.

    Guiding Devices: Side guide rollers or guide plates are typically installed at the inlet and outlet to prevent the strip from straying.

    Backup Rollers (Optional): For wide or thick plate straightening machines, support rollers are installed on the back (non-working) side of the work rolls to prevent excessive deflection.

    Lubrication System: Lubricates roller bearings.

    Protective Cover: Provides safety protection.

    Type HCL-200 HCL-300 HCL-400 HCL-500 HCL-600
    Width (mm) 200 300 400 500 600
    Thickness (mm) 1.0 ～ 6.0
    Reducer 1:30
    Motor Power (HP) 5 5 7 7 7
    Adjusting Method Worm gear
    Speed Adjust Variable frequency speed regulation
    Leveling Roll Dia. ￠90×7 (Upper 4 Down 5)
    Power (V) AC 3Ph　380V
    Machine Size (L×W×H) 1450×680×1580 1450×780×1580 1450×880×1580 1450×980×1580 1450×1080×1580
    Machine Weight (Kg) 430 550 670 800 900
