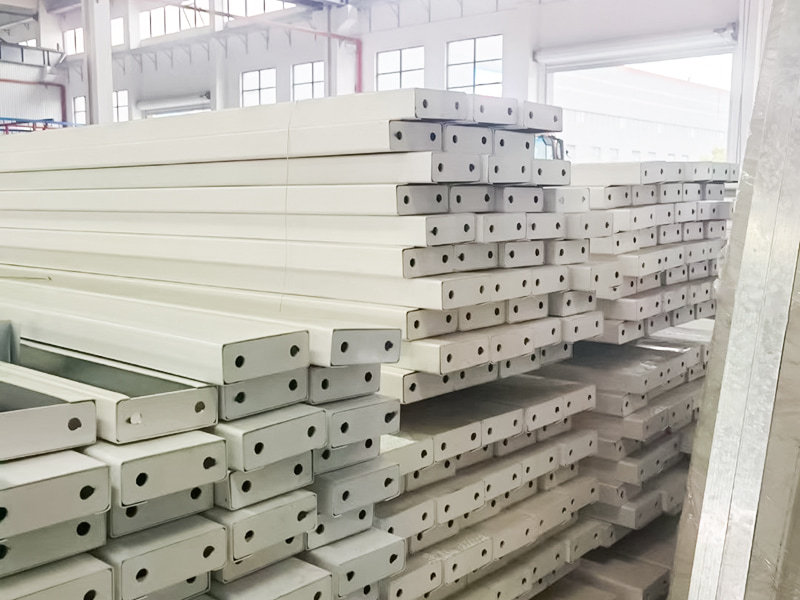

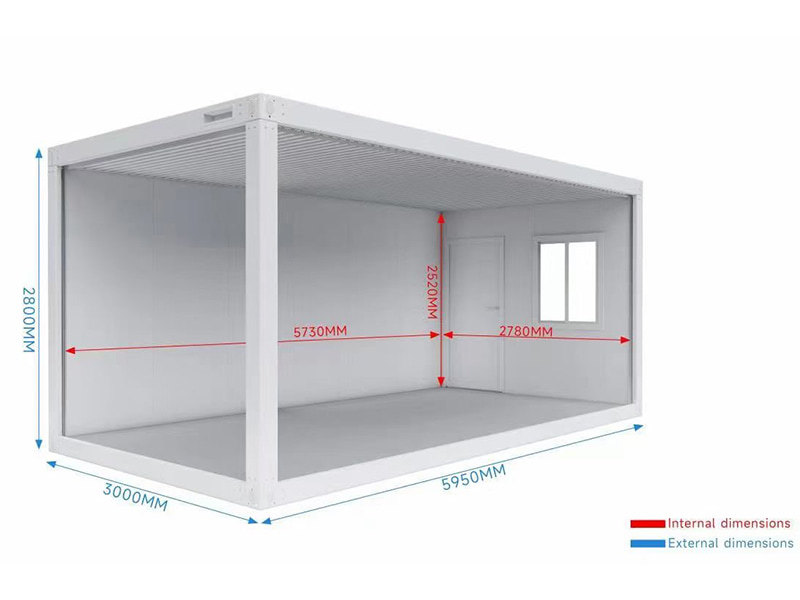

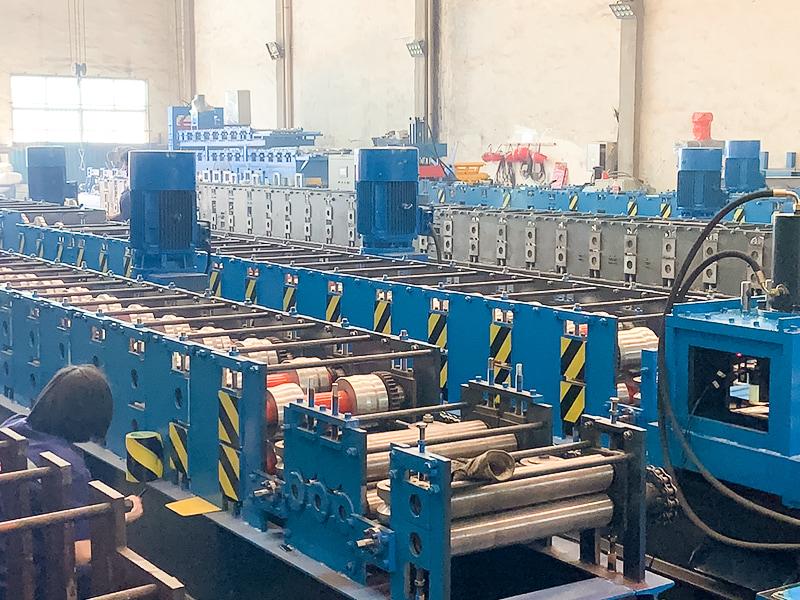

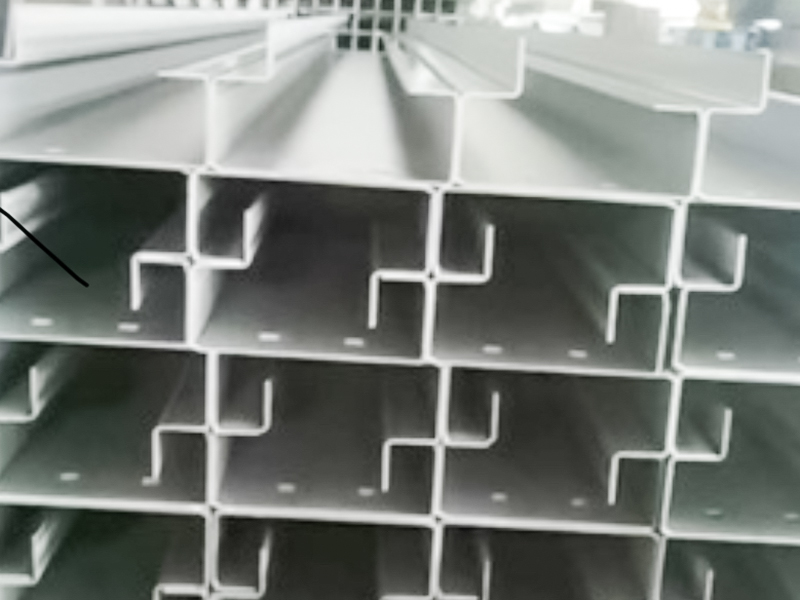

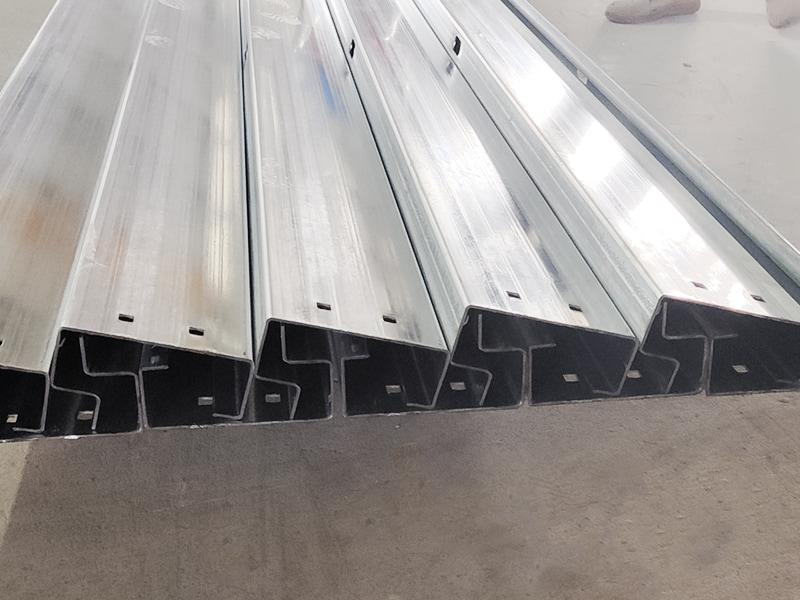

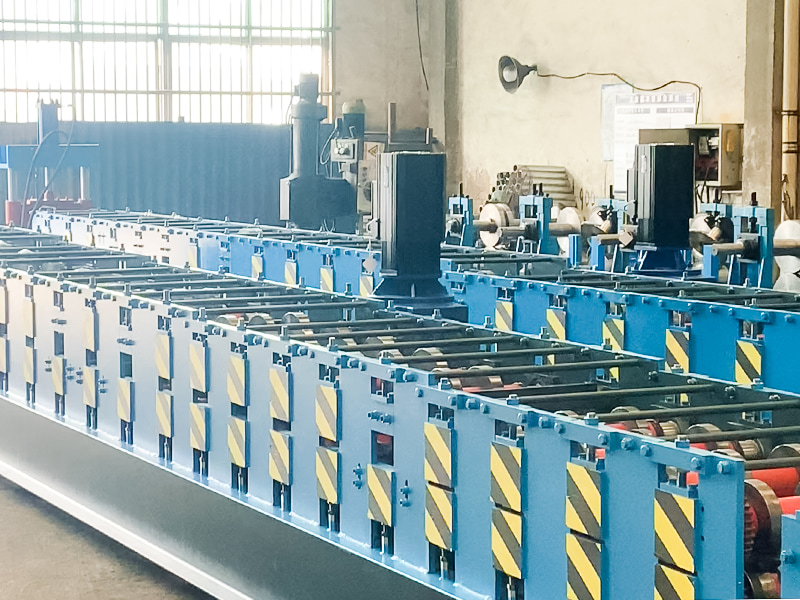

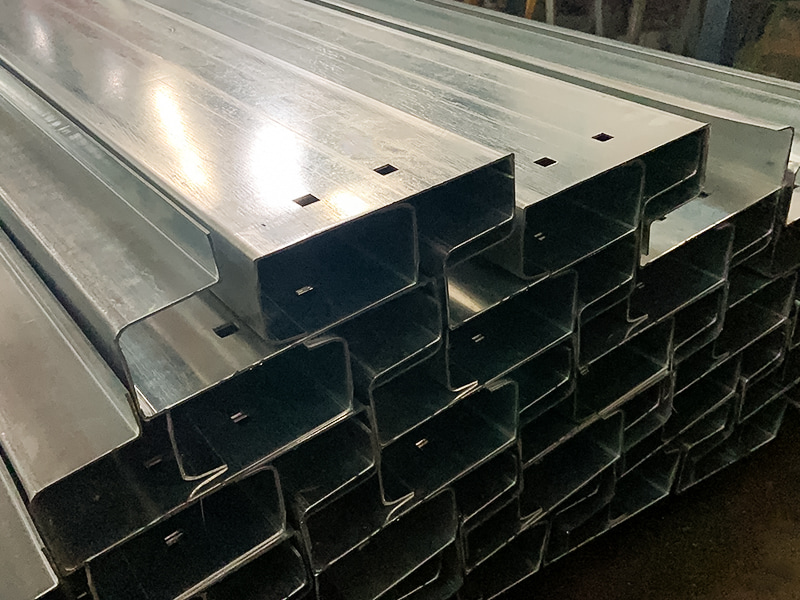

The Detachable Container House Beam is the main load-bearing structural member of the Detachable Container House (a modular container-type house, equipment box, temporary building, etc. that can be quickly assembled and disassembled), usually as the top beam, bottom beam, or side beam of the container house. Its cross section is usually a specific and optimized structural profile, such as C-type, U-type, hat-type, or more complex special-shaped cross section with reinforcing ribs to meet the requirements of structural strength, light weight, and convenient connection; it has high requirements for dimensional accuracy, straightness, and strength consistency to ensure the fast and reliable assembly and overall structural performance of the detachable container house; galvanized steel, color-coated steel or aluminum alloy are commonly used, which has the characteristics of corrosion resistance, durability, and lightness. The Detachable Container House Beam Roll Forming Machine is an automated production equipment that uses cold roll forming technology to continuously, high-speed, and high-precision roll-form steel coils into beams of specific cross-section shapes required for detachable container houses. It is an automated metal processing equipment specially used for mass production and high-efficiency production of top beams used in detachable container houses (or similar modular building units). It is one of the core equipment in the large-scale industrial production of detachable container houses. Its high efficiency, precision, and automation have greatly supported the development of the modular construction industry.
Get A Quote
PREV：No previous articleNEXT：Detachable Container House Column Roll Forming Machine
  • Product Information

  • Special Features:

    Targeted design: The hole designation of the roller is specifically for the cross-sectional shape of one or several specific specifications of the quick-joined box beam.

    High speed and high efficiency: In order to meet the needs of large-scale production of detachable container houses, this type of equipment is usually designed to run at high speed and can produce tens of meters or even longer profiles per minute.

    Material adaptability: It can handle metal coils of specific thickness and material commonly used in detachable container houses (such as 2.0mm - 3.0mm thick galvanized steel).

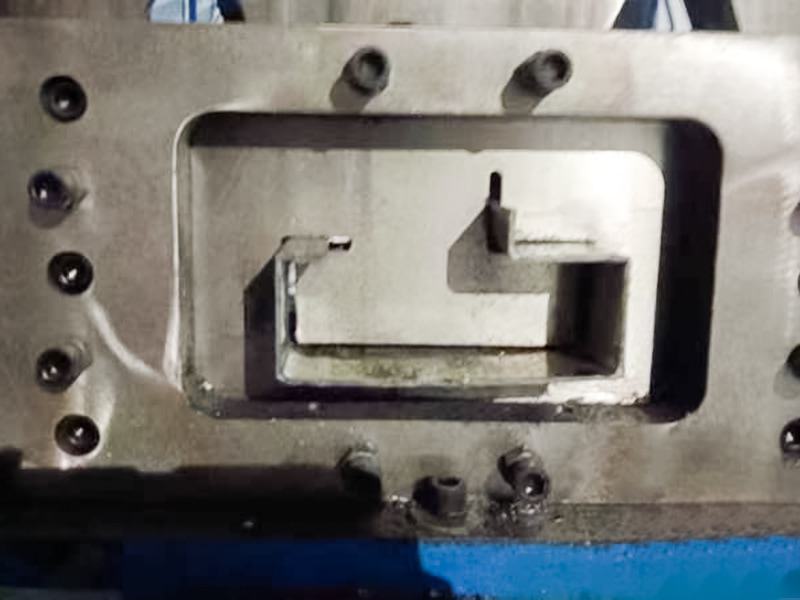

    Cutting method: According to the connection requirements of the beam ends (such as punching and cutting corners), it may be equipped with a precision flying saw or combined with a stamping unit for fixed-length cutting and punching/cutting corners.

    Optional configuration: It may include an online punching unit (punching connection holes for the beam during or after forming), an automatic stacking device, etc.

    Technical Parameters
    Item Parameter Remark
    Machine Base National Standard No.50 I-Beam Steel Overall Welding Structure
    Roller Material Gr15SiMn Vacuum Hardening
    Main Shaft φ90，40Cr Hardening and Tempering
    Forming Groups 22
    Main Motor Power 30Kw
    Main Drive Gear Box K127 (K127 Helical Gear Box)
    Drive Method 1.5 Inch Double Chain Drive
    Cut-Off Mode Hydraulic Cut-Off Hydraulic Station Motor Power Is 11KW
    Uncoiler Load 10-Ton, With Loading Platform Hydraulic Station Motor Power Is 5.5KW
    Control System Siemens/Schneider PLC
    Hydraulic System BeiJin Huade Brand
    Total Length Of Production Line Around 20 Meters
    Equipment Weight Around 12-Ton
    Raw Material Thickness 2.0Mm~3.0mm Q235 Galvanized Coil
    Raw Material Width 355mm
    Production Speed Around 15m/min
